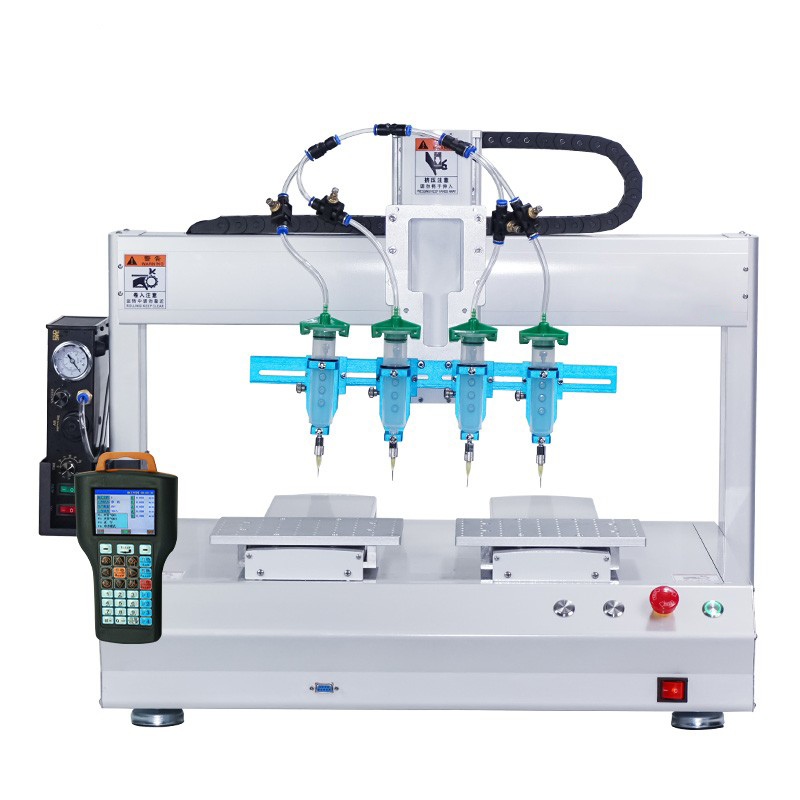

Double platform Multi-head dispensing machine

Product Number：DTA330

Product Usage：The multi-head high-speed dispensing machine is a highly efficient automated equipment, mainly used for precise and high-speed dispensing operations on multiple workpieces in the production process of electronics, semiconductors, LEDs, automobiles and medical industries.

Applicable Industries：Electronics industry: such as coating protection of PCB boards, component fixing, solder joint protection, etc. Semiconductor industry: used for chip packaging, wafer bonding and other processes. LED industry: such as LED light bar dispensing, LED display screen packaging, etc. Automotive industry: used for car light sealing, electronic component protection, interior decoration parts bonding, etc. Medical equipment: such as syringes, catheters, medical equipment dispensing and sealing, etc. Home appliance industry: such as circuit boards, switches, connectors, etc.

National Advisory Hotline：

+86 18975335491

Advisory

Product Details

Multi-head high-speed dispensing machine

Multi-head high-speed dispensing machine is a kind of efficient automation equipment for industrial production, specially designed for dispensing multiple positions or processing multiple workpieces at the same time, and is widely used in electronics, semiconductors, LED, automobiles, medical devices and other fields.

1、The following is a detailed introduction to the multi-head high-speed dispensing machine:

Main features:

1. Multi-head design:

Equipped with multiple dispensing heads, it can dispense multiple workpieces at the same time, greatly improving production efficiency.

2. High-speed motion control:

Adopt high-performance servo motors and advanced motion control systems to ensure high-speed and precise dispensing operations.

3. High precision:

High-precision screw and guide rail system ensures the accuracy and stability of the dispensing position, suitable for small and precise dispensing needs.

4. Intelligent control system:

Equipped with intelligent control system, supports multiple programming methods (such as CAD import, manual teaching), simple operation, easy adjustment and optimization.

5. Flexible adaptability:

The number and spacing of dispensing heads can be adjusted according to different process requirements, suitable for workpieces of various sizes and shapes.

6. Versatility:

Supports multiple processes such as dispensing, filling, coating, etc., suitable for different glue types (such as epoxy resin, silicone, UV glue, etc.).

2、Advantages of multi-head high-speed dispensing machine:

1. Improve production efficiency:

The multi-head design significantly increases the production volume of a single operation and is suitable for mass production.

2. Reduce production costs:

Reduce manual operations, reduce labor costs, and reduce material waste due to high-precision dispensing.

3. Improve product quality:

Precise dispensing control ensures consistent dispensing volume for each workpiece, improving product consistency and reliability.

4. Reduce equipment space occupation:

One device can complete multi-head dispensing operations, reducing the equipment space occupied by the production line.

5. Environmental protection and safety:

The sealed dispensing system reduces the volatilization and pollution of glue, keeps the working environment clean, and is safe to operate.

3、Double platform Multi-head dispensing machine features:

3.1 Alternate operation of dual platforms, saving time for picking and placing products

3.2 Independent mold opening, aluminum profile molded structure, beautiful appearance

3.3 Hand-held teaching programming device, programming is quick and easy

3.4 Dispensing speed and glue amount can be set individually

3.5 High-precision stepping motor control, precise dispensing track

3.6 Can be used to dispense space points, lines, arcs, and other arbitrary shapes

3.7 A variety of dispensing needles, syringes, dispensing valves and controllers to meet different needs

4、Double platform Multi-head dispensing machine Specification Table:

model	Automatic dispenser
stroke	300/300/100（On-demand customization）
Programmatically	Teaching programming or graphics import
Movable graphic trajectory	Point, straight line, arc, full circle, curve, polyline, spiral, ellipse
Dispensing needle	Plastic needle/TT needle
Dispensing tube	3CC/5CC/10CC/30CC/55CC/100CC/200CC/300CC/500CC
Minimum discharge	0.01ml
Glue frequency	5 times/sec
Load	Y/X axis load	10kg
	Z axis load	5kg
Shaft speedX/Y/Z（mm）	0-600mm/sec
Decomposing ability	0.01mm/Axis
Repeatability（mm）	Screw drive	0.01-0.02
	Synchronous belt drive	0.02-0.04
Program recording mode	At least 100. 5000Points per group
Display method	LCD teaching box
Motor system	Japan micro stepping precision motor
Transmission mode	guide	Taiwan Shangyin Linear Guide
	Screw	Taiwan Silver Screw
	Belt	Italy Elate Synchronous Belt
	X/Y/Z axis synchronous belt is standard configuration, Z axis screw is optional, X/Y/Z axis screw is customized
Motion tweening function	3axis (any route in 3 three-dimensional space)
Input power	Full voltage AC110V-220V
External control interface	RS232
Motor control axis	3 axis
Axis dynamic range	X axis	300（Customized according to needs）
	Y axis	300（Customized according to needs）
	Z axis	100（Customized according to needs）
	R axis	（Customized according to needs）
Dimensions	730589630
Body weight	68kg
