VERMES ASYMTEK NORDSON Mingseal dispensing nozzle parts
Product Number：VERMES ASYMTEK NORDSON Mingseal dispensing nozzle parts
Product Usage：The dispensing head and nozzle parts are one of the key components of the dispensing machine, responsible for accurately delivering glue or other fluid materials to the work surface.
Applicable Industries：1.Optics and optoelectronics industry 2.Biochemical industry 3. Photovoltaic solar energy industry 4.SMD/SMT (Surface Mount Semiconductor Manufacturing) Industry 5.Pharmaceutical industry 6.LCD/LED manufacturing industry 7. Electronic components industry 8.Semiconductor packaging 9. Fixing and protecting PCB electronic parts 10.LCD glass panel packaging and bonding 11. Mobile phone board coating or button dispensing 12. Speaker dispensing 13. Battery box dispensing and sealing 14. Auto parts coating 15.Coating and bonding of hardware parts* 16. Quantitative gas and liquid filling coating 17.Chip bonding
VERMES ASYMTEK NORDSON Mingseal for micro dispensing systems
Dispensing systems Nozzles is an all-round system for medium to high viscosity media. It is suitable for the application of a wide range of fluids, such as:
1.SMT Adhesives
2.Filled Conductive Glues
3.Silver Conductive Adhesives
4.Solder Pastes
5.Solder Fluxes
6.Silicones
7.LED-phosphor
8.Underfill materials
9.Hot Melts.
NORDSON VERMES Dispensing systems Nozzles Major Advantages
Fast: Dispensing nozzles Opening and closing of the valve for max needle lift with more than 3000 Hz (Depending on application and Media), nonstop operation with up to 1000 Hz.
Versatile: Dispensing nozzles Freely adjustable parameter settings allow to customize the jet properties to the dispense fluid properties. Electronic control unit allows change of dispensing parameters without delay. Also compatible for low or medium viscous media (if the tappets are switched often or if the dispensing amounts are very small).
Precise: Dispensing nozzles High repeatability of drop-to-drop dispensing volume for media of all viscosity. Dispensing into cavities, grooves and irregular surfaces.
Powerful: Dispensing nozzles Converting the force of the latest generation piezo through sophisticated mechanics, the system can jet highest viscosity media with pressures of up to 1.000 bar.
Flexible: The modular design of the Nozzles and tappets for micro dispensing systems allows user defined configurations for various applications. You can adjust the same system to very different process and fluid parameters with the exchange of just a few parts. You can use a number of different nozzle units for a wide range of media and dot sizes. For the optimum performance it is possible to choose from different tappet geometries. You can choose from several different component materials, which allows for virtually unlimited media compatibility.
Optimize Your Industrial Dispensing Process
In modern industry, dispensing accuracy and efficiency are key factors. Whether you are engaged in electronic component dispensing, automotive parts dispensing, medical device dispensing or packaging dispensing, we can provide you with the ideal VERMES ANDA GKG AXXON dispensing head solution. Our products cover a variety of high-precision nozzles, tappets, piezoelectric ceramic parts and automated dispensing systems to ensure the best results in every operation.
Types of Dispensing Head Nozzles
1. Dispensing Nozzle: Suitable for various industrial dispensing applications to ensure precise control of fluids.
2. Dispensing Valve: Used in conjunction with the nozzle for perfect fluid control.
3. High Precision Nozzle: Specially designed for applications requiring high precision to ensure accurate dispensing of every drop of fluid.
4. Needle Nozzle: Suitable for micro-fluid dispensing, commonly used in the production of electronic components and precision equipment.
5. Jetting Nozzle: Used for high-speed dispensing, suitable for fast production lines.
6. Fan Nozzle: Provides uniform distribution, commonly used in coating and covering applications.
7. Dot Nozzle: Suitable for dispensing applications, ensuring precise consistency of each dot.
8. Corrosion-Resistant Nozzle: Made of special materials, suitable for handling corrosive fluids.
9. Wear-Resistant Nozzle: Made of highly wear-resistant materials to extend the life of the nozzle.
10. Stainless Steel Nozzle: Durable and rust-proof, suitable for a variety of industrial applications.
11. Tungsten Carbide Nozzle: Extremely high hardness and wear resistance, suitable for harsh working environments.
12. Ceramic Nozzle: High temperature and chemical corrosion resistance, suitable for special applications.
13. PTFE Nozzle: Has excellent chemical inertness and high temperature resistance.
VERMES NORDSON ANDA GKG Dispensing Solutions for Multiple Industries
Our nozzles and dispensing systems are used in a wide variety of industries, including but not limited to:
Electronic Component Dispensing: Precision nozzles ensure accurate placement of electronic components.
Automotive Part Dispensing: Durable nozzles withstand the demanding environment of automotive manufacturing.
Medical Device Dispensing: High-precision nozzles meet the stringent quality requirements of the medical industry.
Packaging Dispensing: High-efficiency dispensing systems increase speed and accuracy on packaging lines.
ASYMTEK VERMES AXXON ANDA GKGDispensing System Nozzles and Tappets
Due to the wide variety of nozzles and tappets used in VERMES AXXON ANDA GKG dispensing machines and the different brands of dispensing machine manufacturers, the website shows AXXON ANDA GKG dispensing system nozzles and tappets for some products. If you would like to know more about the nozzles and tappets or the VERMES AXXON ANDA GKG dispensing systems you need, please contact our customer service on Whatsapp or Telegram ,Skype.
Dispensing system nozzle and tappet product manufacturing capabilities:
Dispensing system nozzle porosity accuracy up to 0.025 mm
Dispensing nozzle finish to mirror Ra0.1
Dispensing nozzle roundness/concentricity: 0.002 mm
Nozzle production capacity up to 500,000 nozzles per year
If the dispensing system nozzles or tappets, our company has not manufactured or customized products (according to drawings or samples processing), the delivery time in 5 to 10 working days to complete the spot products shipped the same day.
Machining Precision and Materials of Dispensing Machine Nozzles
The precision and material of dispensing machine nozzles are critical for ensuring accurate and reliable dispensing performance.
Machining Precision
1. Tolerances: High machining precision ensures that the nozzles have tight tolerances, which is essential for maintaining consistent flow rates and preventing leaks. Typical tolerances for dispensing nozzles can be in the range of micrometers (5µm).
2. Surface Finish: A smooth internal surface finish reduces friction and prevents clogging, ensuring a smooth flow of adhesive. Polished surfaces also reduce the risk of material buildup.
3. Dimensional Accuracy: Precise dimensions of the nozzle orifice and internal channels are crucial for achieving the desired flow characteristics. Advanced CNC machining and laser cutting techniques are often used to achieve high dimensional accuracy.
4. Consistency: Consistency in manufacturing is important for maintaining uniform performance across different nozzles. This requires rigorous quality control processes and precise manufacturing techniques.

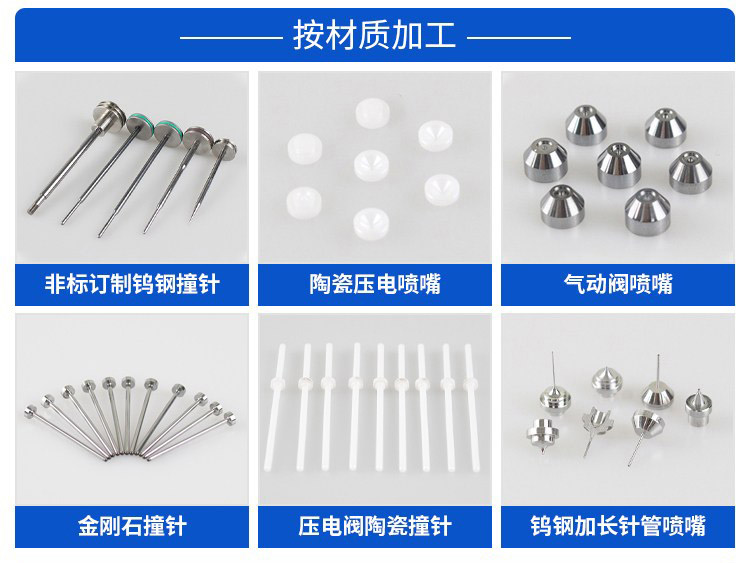

ASYMTEKVERMES AXXON ANDA GKG Dispensing Nozzle Materials
1. Stainless Steel Nozzle:
Properties: Corrosion-resistant, durable, and capable of withstanding high pressure.
Applications: Commonly used for nozzles handling aggressive or high-viscosity adhesives.
Grades: Types like 304 and 316 stainless steel are often used due to their excellent chemical resistance.
2.Tungsten Carbide Nozzle:
Properties: Extremely hard and wear-resistant.
Applications: Ideal for nozzles subjected to high abrasion or requiring long life in harsh environments.
Advantages: Provides extended service life and maintains dimensional integrity over time.
3. Ceramics Nozzle:
Properties: High hardness, excellent wear resistance, and chemical inertness.
Applications: Suitable for high-precision dispensing of abrasive materials or in environments where metallic contamination must be avoided.
Types: Materials like alumina (Al₂O₃) and zirconia (ZrO₂) are commonly used.
4. Polymer Materials Nozzle (e.g., PTFE, PEEK):
Properties: Chemically inert, low friction, and lightweight.
Applications: Suitable for dispensing reactive chemicals or where a non-metallic nozzle is preferred to avoid contamination.
Advantages: Easy to machine and can be used in applications where metal nozzles may not be suitable.
5. Special Alloys Nozzle:
Properties: Custom alloys can be designed to provide specific properties such as enhanced chemical resistance or higher strength.
Applications: Used in specialized dispensing applications where standard materials may not perform adequately.
The choice of material and machining precision for dispensing machine nozzles is dictated by the specific requirements of the application, including the type of adhesive, the required precision, and the operating environment. Advanced manufacturing techniques and high-quality materials ensure that the nozzles can deliver consistent and reliable performance, which is crucial for maintaining the quality and efficiency of the dispensing process.
The advantages of VERMES AXXON ANDA GKG dispensing system nozzles and tappets include:
1. Non-contact injection: improves the accuracy and yield of dispensing, suitable for precision dispensing process.
2. High-speed spraying: can continuously operate high-frequency spraying glue, suitable for high-speed automated production lines.
3. Wide applicability: it can handle medium to high viscosity liquids and is suitable for a wide range of dispensing scenarios.
4. Precise control: by changing the driving voltage amplitude, frequency, duty cycle and other parameters, it realizes precise control of the glue droplet spraying performance.
5. Easy maintenance: simple structure, easy to disassemble and clean, reducing maintenance costs.
These advantages make the Dispensing System nozzle firing pin widely used in electronic manufacturing, LED packaging, medical equipment and other fields.
Dispensing machine nozzles offer several advantages that make them essential in various industries, such as electronics manufacturing, automotive, medical devices, and packaging. Here are the key advantages of using high-precision dispensing nozzles:
VERMES AXXON ANDA GKG Dispensing machine nozzles Advantages
1. High Precision
Accurate Dispensing: Precision nozzles allow for accurate and consistent dispensing of adhesives, ensuring that the exact amount is applied every time.
Fine Control: Advanced nozzle designs enable fine control over the flow rate and dispensing pattern, which is crucial for applications requiring high accuracy.
2. Improved Product Quality
Consistent Application: Ensures uniform application of adhesives, which is vital for maintaining product quality and reliability.
Reduced Defects: High-precision dispensing minimizes the risk of over- or under-application, reducing the likelihood of defects and rework.
3. Material Efficiency
Reduced Waste: Precision nozzles help in applying the exact amount of adhesive needed, minimizing waste and lowering material costs.
Cost Savings: Efficient use of materials leads to significant cost savings over time, especially in large-scale production.
4. Versatility
Wide Range of Applications: Can handle various types of adhesives and fluids, including high-viscosity materials, making them suitable for diverse applications.
Customizable Designs: Nozzles can be designed and manufactured to meet specific application requirements, providing flexibility in production processes.
5. Durability and Reliability
High-Quality Materials: Made from materials like stainless steel, tungsten carbide, and ceramics, which offer excellent wear resistance and longevity.
Consistent Performance: Durable nozzles ensure consistent performance over long periods, reducing downtime and maintenance needs.
6. Enhanced Production Speed
High-Speed Dispensing: Advanced nozzles allow for high-speed dispensing without compromising accuracy, increasing production throughput.
Automated Integration: Easily integrated into automated dispensing systems, enhancing overall production efficiency.
7. Ease of Maintenance
Simple Cleaning: High-quality nozzles are designed for easy cleaning and maintenance, reducing downtime and ensuring smooth operation.
Replacement Parts: Availability of replacement parts and modular designs facilitate quick repairs and replacements, minimizing disruptions.
8. Environmental Benefits
Reduced Chemical Exposure: Precise dispensing reduces the amount of adhesive used, lowering the exposure to potentially harmful chemicals.
Sustainable Practices: Efficient use of materials and reduced waste contribute to more sustainable manufacturing practices.
High-precision dispensing nozzles offer numerous advantages that enhance the quality, efficiency, and reliability of the dispensing process. By ensuring accurate and consistent adhesive application, they play a crucial role in improving product quality, reducing waste, and optimizing production workflows. These benefits make precision dispensing nozzles an essential component in various industrial applications.
