High-Precision Glue Dispensing Nozzle for GKG Systems

JHIMS APJ1021 – Precision Dispensing for Industrial Applications

For inquiries about this nozzle or other dispensing solutions, contact our customer service via WhatsApp or Telegram.

1.Product Overview

      The JHIMS high-precision glue dispensing nozzle (SKU: APJ1021) is designed for GKG systems, offering unparalleled accuracy for gluing, bonding, sealing, and more. Compatible with medium to high-viscosity fluids like SMT adhesives, silicones, and hot melts, it’s perfect for automated production lines.

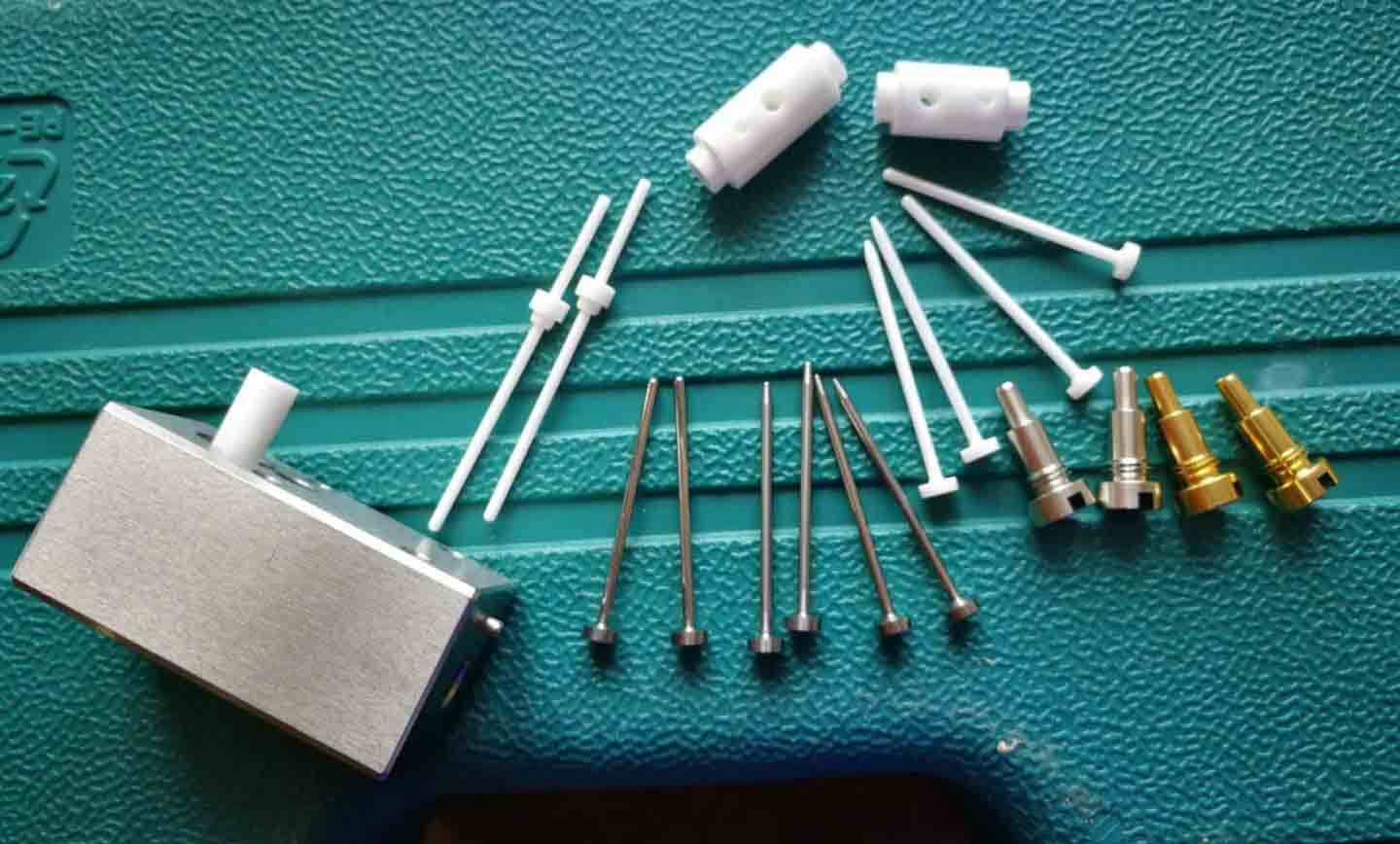

Nordson High-Precision Dispensing Nozzle Seals Parts Nordson EFD High-Precision Glue Dispensing Nozzle

2.Industries Served

This nozzle meets precision dispensing needs across multiple sectors:

  • Electronics Manufacturing: Ideal for SMT and micro-hole applications.
  • Automotive: Ensures accurate bonding and sealing.
  • Medical Devices: Supports precise encapsulation.
  • Coatings: Uniform adhesive application.
  • Optics: High-precision control for delicate assemblies.
  • Appliances: Reliable sealing and bonding.
  • Packaging: Consistent gluing for materials.
  • Food Processing: Safe adhesive application.

3.Key Features

  • High-Frequency Dispensing: Operates at 3000 Hz, delivering up to 1000 Hz continuous dispensing.
  • Customizable Control: Adjustable settings for low to medium viscosity fluids.
  • Repeatability: Consistent drop-to-drop volume for irregular surfaces.
  • High Force: Piezoelectric technology supports 1000 bar jetting.
  • Modular Design: Swappable components for diverse applications.

4.Compatible Systems

Works with GKG systems and various valve types:

JHIMS Glue Dispensing Nozzle for GKG Systems

5.Benefits

  • Non-Contact Injection: Enhances accuracy and yield.
  • High-Speed Spraying: Suits automated lines.
  • Versatility: Handles medium to high-viscosity liquids.
  • Precision Control: Adjustable for glue droplet performance.
  • Easy Maintenance: Simple disassembly and cleaning.

6.Specifications

  • Pore Accuracy: 0.025 mm
  • Surface Finish: Mirror polish (Ra0.1)
  • Roundness/Concentricity: 0.002 mm
  • Material: Stainless Steel (custom options available)
  • Annual Output: 500,000 units
  • Customization: 5-10 day delivery

7.Product Details

High-Precision Glue Dispensing Nozzle for GKG Systems

Brand: JHIMS

SKU: APJ1021

Price: $60 USD (Valid until Dec 11, 2026)

Availability: In Stock

Seller: Shenzhen Jinghe Technology Co., Ltd.

8.Shipping & Returns

Shipping Cost: $30 USD to the US (7 days total).

Return Policy: Free returns within 30 days via mail (US only).

9.Customer Reviews

Rating: 4.9/5 (36 reviews) ★★★★★

Review by Mason (Feb 13, 2024): "The quality of the item is very good, no problem using it." ★★★★★

See Case Studies

10.FAQ

Q: What fluids is this nozzle compatible with?
A: SMT adhesives, silicones, hot melts, and more.

Q: Can it be customized?
A: Yes, contact us with your specifications.
