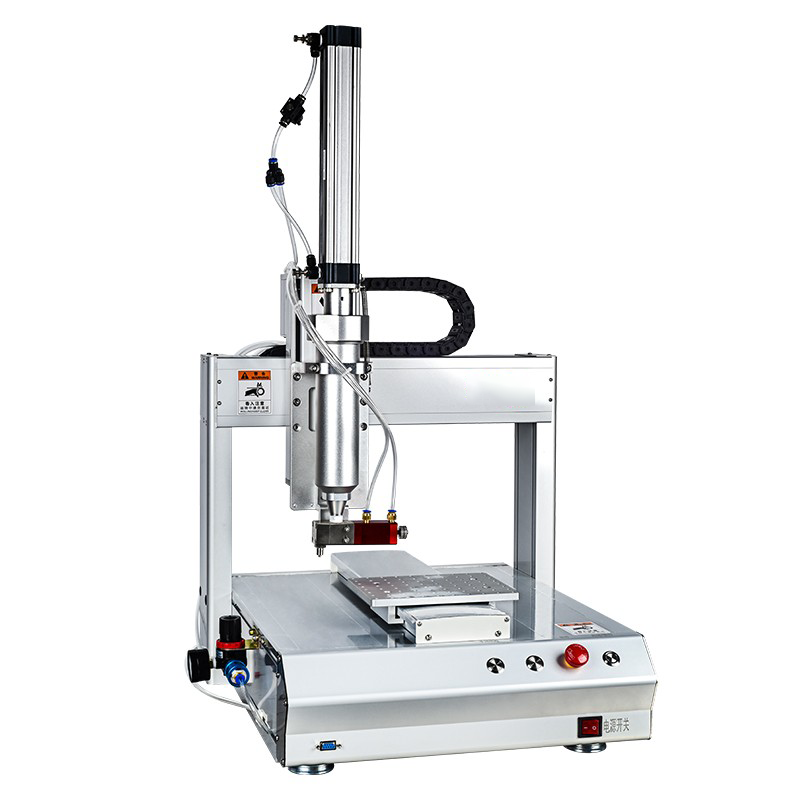

.png "Desktop high-speed silicone dispenser")
Product Number：GSG330
Product Usage：The desktop high-speed silicone dispensing machine is a device designed for precision glue coating process, mainly used to quickly and accurately apply silicone on various substrates. It has the characteristics of high speed and high precision and is suitable for a variety of industrial fields.
Applicable Industries：Electronic component packaging: used to apply silicone on electronic components for packaging and protection to prevent moisture and dust from entering. Circuit board gluing: Apply silicone on printed circuit boards (PCBs) for component fixation and electrical insulation. Optical component bonding: used for bonding optical components to ensure optical performance and mechanical strength. Medical device manufacturing: used to apply silicone during the assembly process of medical devices to achieve sealing and bonding. Consumer electronics: glue is applied during the assembly process of the housing and components of consumer electronics products such as mobile phones and tablets.
National Advisory Hotline：
+86 18975335491Desktop high-speed silicone dispenser
Advantage:
1. According to different needs, the dispensing speed/dispensing amount/dispensing trajectory (spatial points, lines, arcs, etc.) can be set separately.
2. Precision suck back controller, imported solenoid valve, with suck back function, accurate dispensing track, even glue, breaking glue simply, no drawing or dripping.
3. A variety of dispensing needles, syringes, dispensing valves and controllers are available to meet different requirements, and the air pressure can be adjusted to control the amount of glue.
4. High-end brand configuration: Japan's Shinano Electric, Taiwan Shangyin rail, Japan's Omron photoelectric switch, Italy's Elate belt, Leisai driver, Taiwan's MEAN WELL power supply, red wave switch.
5. Independent mold opening, aluminum profile mold casting structure, solid, beautiful, high precision, guaranteed quality, beautiful appearance.
6. Hand-held teaching programming device, supporting both Chinese and English interfaces, easy to learn, 8 years of development experience, and tens of thousands of application cases. We are equipped with a dedicated person to guide the use, only 30 minutes can be basically mastered.
7. The system can store hundreds of processing files, and each file can support 8000 instructions, which can be called up when in use. It supports the import of DXF and PLT files, and the function of automatic path optimization.
8. Monthly sales of 500 sets of equipment, rich on-site practical use cases and experience, 30-person after-sales service and process debugging team, guarantee after-sales service and technical support.
9. One year free warranty and lifetime free maintenance.
Specification Table:
|
model |
GSG330 |
|
|
stroke |
300/300/100（On-demand customization） |
|
|
Programmatically |
Teaching programming or graphics import |
|
|
Movable graphic trajectory |
Point, straight line, arc, full circle, curve, polyline, spiral, ellipse |
|
|
Dispensing valve |
Precision dispensing valve |
|
|
Dispensing bucket |
Capacity optional |
|
|
Minimum discharge |
0.01ml |
|
|
Glue frequency |
5次/秒 |
|
|
load |
Y/X axis load |
10kg |
|
Z axis load |
5kg |
|
|
Axis moving speed X/Y/Z (mm) |
0-600mm/sec |
|
|
Decomposing ability |
0.01mm/Axis |
|
|
Repeatability（mm） |
Screw drive |
0.01-0.02 |
|
Synchronous belt drive |
0.02-0.04 |
|
|
Program recording mode |
At least 100. 5000Points per group |
|
|
Display method |
LCD teaching box |
|
|
Motor system |
Japan micro stepping precision motor |
|
|
transfer method |
guide |
Taiwan Shangyin Linear Guide |
|
Screw |
Taiwan Silver Screw |
|
|
Belt |
Italy Elate Synchronous Belt |
|
|
X/Y/Z axis timing belt is standard configuration, Z axis screw is optional, X/Y/Z axis screw is customized |
||
|
Motion tweening function |
3axis (any route in 3 three-dimensional space) |
|
|
Input power |
Full voltage AC110V-220V |
|
|
External control interface |
RS232 |
|
|
Motor control axis |
3-axis |
|
|
Axis dynamic range |
X axis |
300（Customized according to demand） |
|
Y axis |
300（Customized according to demand） |
|
|
Z axis |
100（Customized according to demand） |
|
|
Dimensions（mm） |
530*589*632 |
|
|
Body weight |
45kg |
|
