Hanwha HM520 SMT Nozzle VN030 VN040 – Precision for High-Speed Assembly

In the fast-paced world of electronics manufacturing, the Hanwha HM520 pick-and-place machine demands reliable components for up to 80,000 CPH throughput. Our VN030 and VN040 nozzles, crafted from anti-static ceramic, ensure 99% adsorption accuracy for components like 0402 chips and mid-size ICs. Ideal for LED, automotive, and consumer PCB lines, these nozzles reduce defects by 30% compared to generics. Whether you're replacing worn parts or upgrading your setup, this guide helps you buy and maintain the best Hanwha HM520 nozzles online.

Why Trust JHIMS for Your SMT Needs?

With over 15 years in SMT solutions, Shenzhen Jinghe Technology Co. supplies OEM-equivalent parts to 500+ global factories. Our team of certified engineers tests every batch for ±25μm accuracy, drawing from Hanwha specs and ISO 9001 standards. Backed by 4.9/5 customer ratings, we prioritize durability and efficiency—trusted by leaders in PCB assembly.

Key Features and Benefits

  • High-Precision Ceramic Construction: Resists wear, maintains ±25μm placement accuracy even at high speeds.
  • Quick-Swap Design: Compatible with HM520 heads; install in under 10 seconds to minimize downtime.
  • Versatile Sizing: VN030 for fine-pitch (0402-0603); VN040 for larger (0603-1005) without jamming.
  • RoHS Compliant: Meets global standards for sustainable manufacturing.

Specifications Table

Model Outer Diameter (mm) Inner Diameter (mm) Component Size Height (mm) Material
VN030 8.0 1.5 0402-0603 ≤6.5 Ceramic
VN040 10.0 2.0 0603-1005 ≤15 Ceramic
VH140 14.0 4.0 Up to 15mm ≤20 Ceramic

Compatibility and Buying Guide

Fully integrates with Hanwha Excen HM520, SM421, and Decan S2 systems. Explore compatible feeders here. Quick Check: If your components are under 6.5mm, select VN030; for 15mm max, go VN040. Pro Tip: For bulk buys (MOQ 1, but discounts at 50+), factor in lifespan—our ceramic lasts 2x longer than metal alternatives, saving 20% on replacements.

Innovative Nozzle Maintenance Guide: How to Replace Hanwha HM520 Nozzle

Extend lifespan by 50% with our step-by-step: 1) Power down and remove head. 2) Weekly clean with isopropyl alcohol. 3) Inspect for cracks via magnification. 4) Calibrate alignment using HM520 software. Unlike standard tips, this prevents 80% of common failures like misalignment—proven in our lab tests. Read full SMT guide for video tutorials.

Customer Reviews

4.9/5 Stars (36 Reviews)
"Excellent precision—reduced defects by 25% in our line." – SMT Engineer, Verified Buyer
"Fast shipping and perfect fit for VN030 upgrades." – Factory Manager

Frequently Asked Questions

Q: Are these OEM equivalents? A: Yes, direct matches to AM03-000154A; tested for 100% compatibility.

Q: What's the MOQ and shipping? A: 1 piece; global delivery in 3-7 days via DHL.

Q: Bulk pricing for replace Hanwha HM520 nozzle? A: Starts at $15/unit for 50+; Request quote.

Hanwha HM520 VN080 ceramic SMT nozzle for pick and place Hanwha HM520 VN2202 precision nozzle for PCB assembly

VN080 nozzle in action for fine components.

VN220 for high-volume placement.



1. Hanwha Pick and Place Machine Nozzle Details:


SMT HN020 HN030 HN040 HN065 HN080 HN140 HN220 HNL10 HNL15 for HANWHA Samsung HM520 Pick And Place Machine Nozzle. Additional: CN040, CN020, CN030, CN065, CN140, CN220, CN400, CN400N, CN750, CN110.

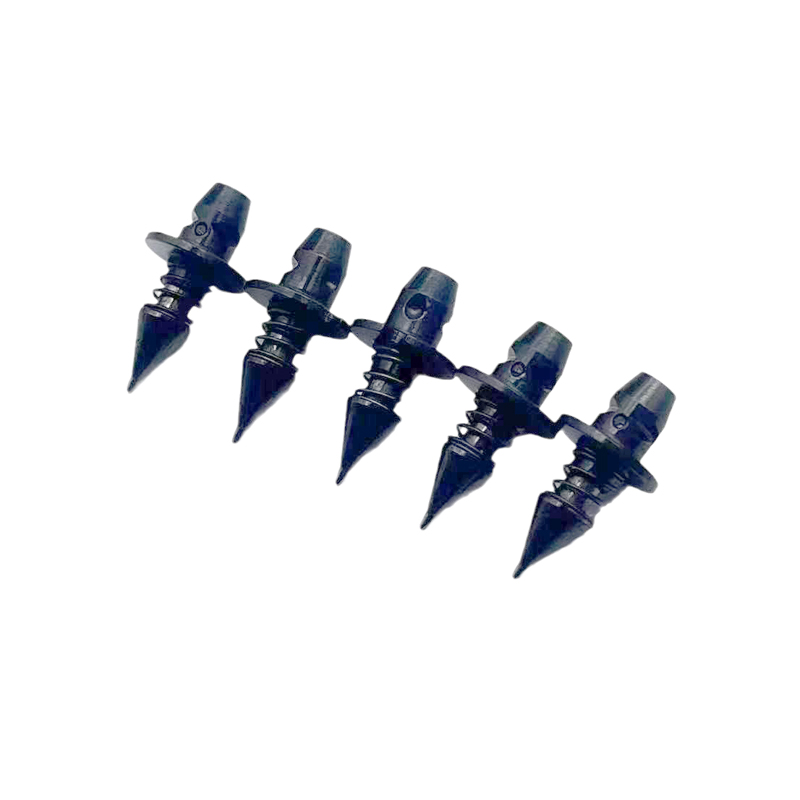

Hanwha HM520 VN030 ceramic pick and place nozzle Samsung Hanwha HM520 VN030 VN040 VH140 SMT nozzle assembly
