Product Number：ys24 machine
Product Usage：yamaha ys24 Pick and place machines are mainly used to place electronic components onto printed circuit boards (PCBs) with high precision and speed to achieve automated electronic assembly.
Applicable Industries：yamaha Pick and place machines are automated devices widely used in electronics manufacturing for the precise installation of components on printed circuit boards. They find applications in diverse industries, including automotive electronics, medical devices, and LED lighting manufacturing, ensuring efficient and accurate assembly. As technology advances, pick and place machines continue to play a critical role in meeting the demands of smaller and more complex electronic components across various sectors.
National Advisory Hotline：

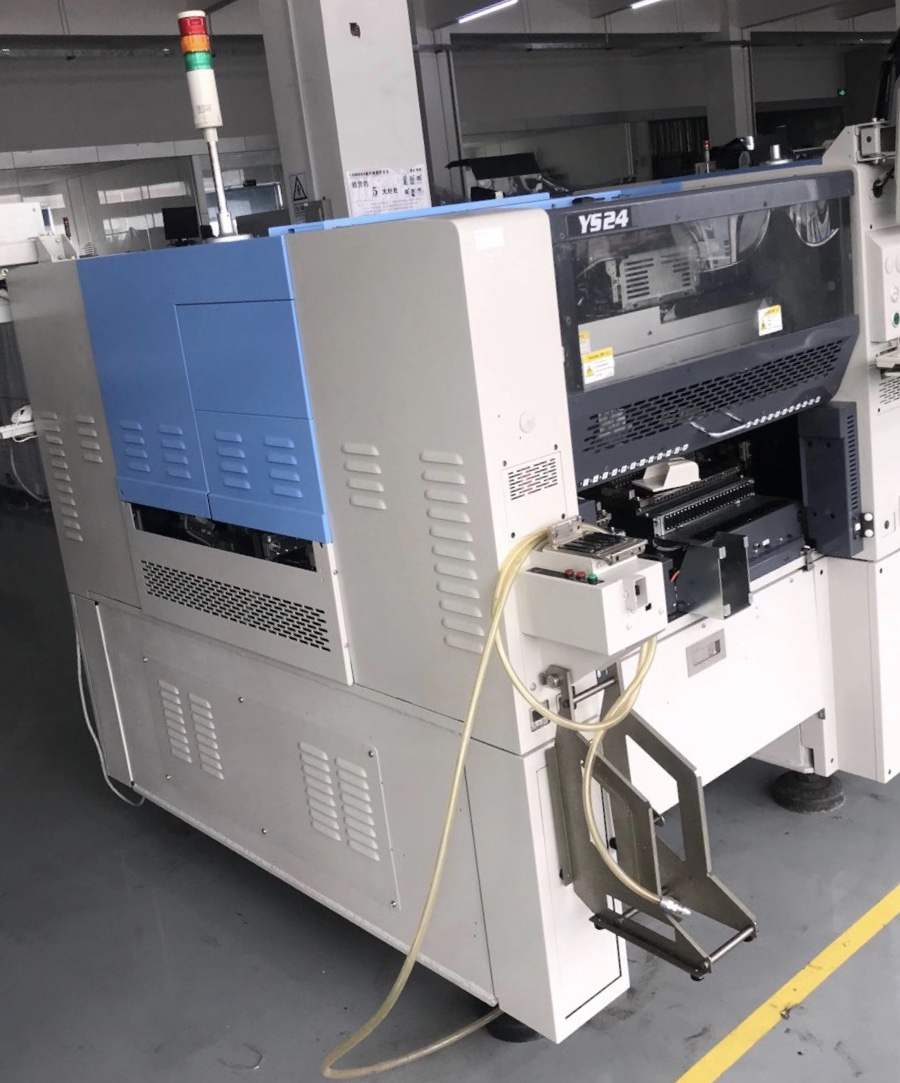

+86 18975335491YAMAHA Pick and Place Machine - Model YS24 Product Overview.
I. YAMAHA Pick and Place Machine - Model YS24 Product Advantages.
1、72,000CPH(0.05sec/CHIP) superior placement capacity newly developed dual stage conveyor table.
2、34KCPH/㎡World's top area productivity, the world's first area productivity of 34,000CPH / ㎡
3、Realization of super large substrate L700×W460mm
4. 2 times higher production capacity than YS12 (max. 72KCPH), same machine length as YS12 1,254mm
5、Double X-axis and new two-station transfer system present the highest production efficiency.
6、Patch parts range from 0402mm ~ 32mm, height: 6.5mm.
7、Maximum loading 120pcs 8mm feeder, 96pcs feeder when using cart, (SS type electronic feeder)
8、Linear motor for Y-axis.
YAMAHA pick and place machine - YS24 type equipment parameters.
1、Object substrate: L50×W50mm～L700×W460mm
2、Placement capacity: 72,000CPH (0.05sec/CHIP: best condition)
3、Placement accuracy：±0.05mm(μ+3σ), ±0.03mm(3σ)
4、Object component：0402～□32mm MAX(height below 6.5mm)
5、Component type: 120 kinds (maximum/converted to 8mm tape)
6, power supply specifications: three-phase AC 200/208/220/240/380/400/416 V ± 10%
7, supply air source: 0.45 MPa or more, clean and dry state
8、Outline dimensions: L1, 254 × W1, 687 × H1, 445 mm (except for the protruding part)
9、Weight of main body: about 1,700kg
