Yamaha YS12 SMT Pick and Place Machine

Name: Yamaha YS12 SMT Pick and Place Machine
Brand: Yamaha
SKU: YS12
Price: 13600 USD
Availability: InStock
Rating: 4.9 (36 reviews)

Product Number：ys12 machine

Product Usage：yamaha ys12 Pick and place machines are mainly used to place electronic components onto printed circuit boards (PCBs) with high precision and speed to achieve automated electronic assembly.

Applicable Industries：yamaha Pick and place machines are automated devices widely used in electronics manufacturing for the precise installation of components on printed circuit boards. They find applications in diverse industries, including automotive electronics, medical devices, and LED lighting manufacturing, ensuring efficient and accurate assembly. As technology advances, pick and place machines continue to play a critical role in meeting the demands of smaller and more complex electronic components across various sectors.

National Advisory Hotline：

+86 18975335491

Advisory

Product Details

Yamaha YS12 SMT Pick and Place Machine

Overview

Boost your electronics manufacturing with the Yamaha YS12 SMT Pick and Place Machine, a compact high-speed solution for precise PCB assembly. Delivering 36,000 CPH (0.1 sec/CHIP) and ±0.05mm accuracy, it's perfect for buy Yamaha YS12 pick and place machine online needs in automotive, medical, and LED sectors. With 1,254mm width and 120 feeders, it ensures flexible, efficient production lines.

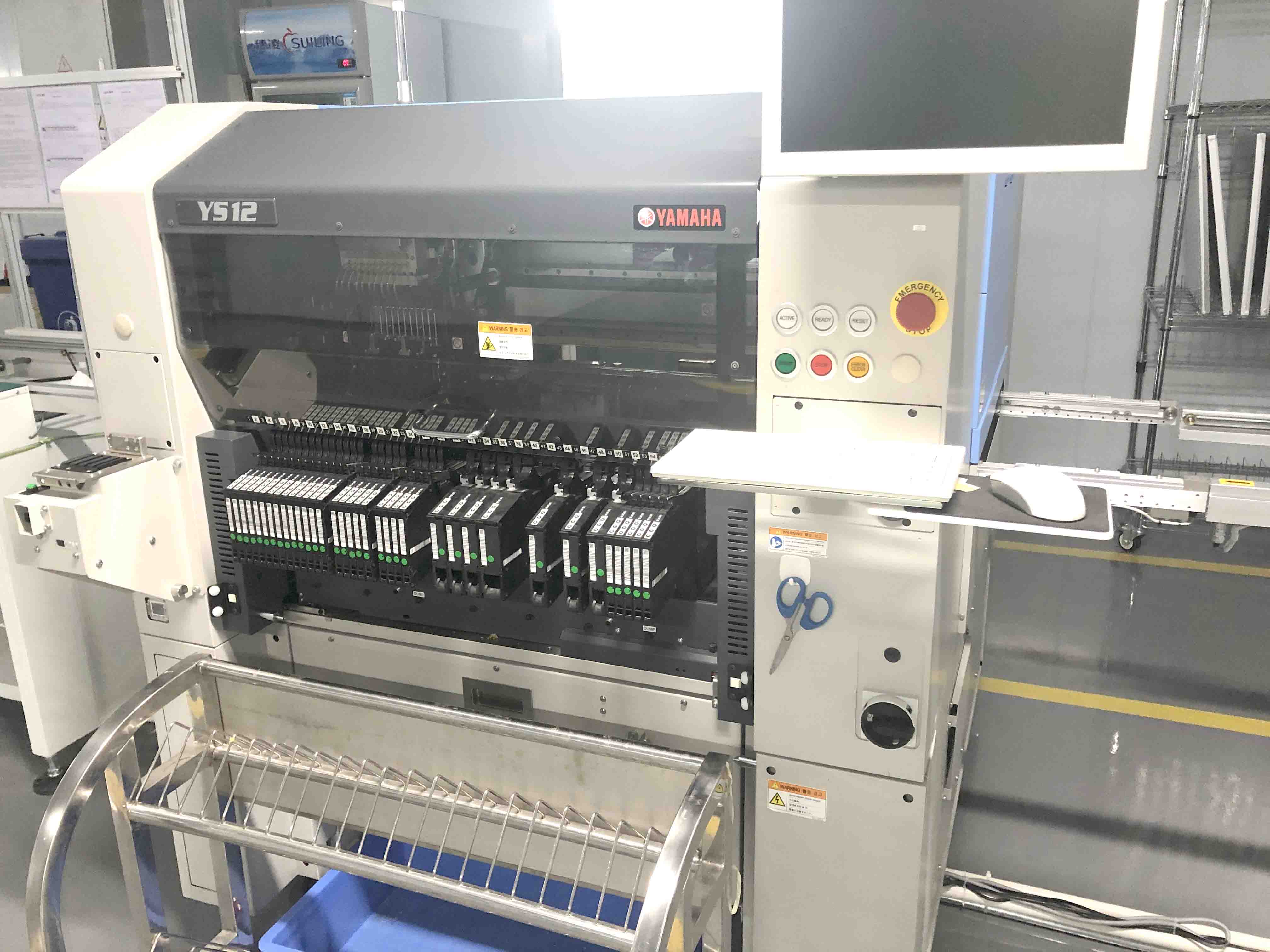

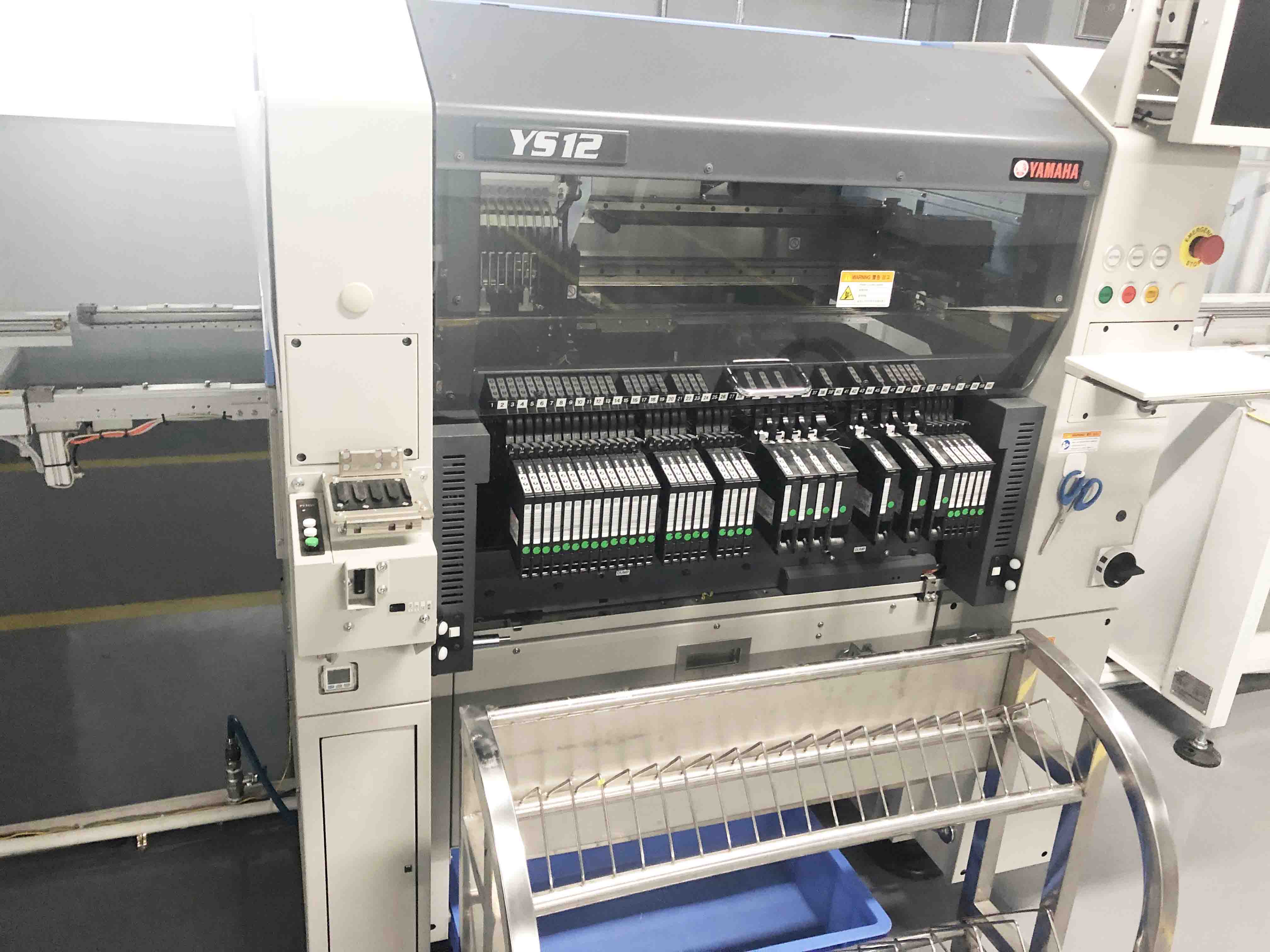

Yamaha YS12 SMT Pick and Place Machine for high-speed PCB assembly Side view of Yamaha YS12 SMT machine for electronics manufacturing

Key Features

High-Speed Performance: 36,000 CPH for rapid, automated electronic assembly.
Compact Design: 1,254mm width integrates into any SMT production line.
Precision Placement: ±0.05mm absolute and ±0.03mm repeat accuracy for reliable results.
Versatile Components: From 0402 to 32x32mm, supporting up to 120 types.
User-Friendly: Factory-free line programming, 10-link head, and easy change carriage.
CE-Certified: Built-in tape cutter, manual tray, and LED kit compatibility.

Technical Specifications

Parameter	Details
Substrate Size	L50×W50mm to L510×W460mm
Placement Capacity	36,000 CPH (0.1 sec/CHIP)
Placement Accuracy	Absolute: ±0.05mm/CHIP (μ+3σ), Repeat: ±0.03mm/CHIP (3σ)
Component Types	0402 to 32x32mm, up to 120 types (8mm tape)
Power Supply	Three-phase AC 200/208/220/240/380/400/416 V ±10%, 50/60 Hz
Air Supply	0.45 MPa or more, clean and dry
Dimensions	L1,254×W1,440×H1,450mm (standard); L1,464×W1,542×H1,450mm (with conveyor)
Weight	Approx. 1,340kg

Applications

Tailored for demanding industries, the Yamaha YS12 supports high-precision tasks in:

Automotive Electronics: ECUs, sensors, and control modules.
Medical Devices: Compact, reliable PCBs for diagnostics.
LED Manufacturing: Small-component lighting assemblies.
Consumer Electronics: Smartphones, wearables, and IoT devices.

Comparison with Similar Models

Unlike the Yamaha YS24 (higher capacity but larger footprint), the YS12 offers compact versatility for mid-volume production. It outperforms budget alternatives in accuracy (±0.03mm vs. ±0.10mm), ideal for space-constrained lines.

Feature	YS12	YS24
CPH	36,000	72,000
Width	1,254mm	1,254mm
Accuracy	±0.03mm	±0.03mm

Why Choose the Yamaha YS12?

As a trusted Shenzhen Jinghe Technology partner (ISO-certified since 2008), we ensure reliability. Benefits include minimized downtime, scalable integration, and expert support for electronics manufacturing equipment.

Efficiency: Reduce cycle times by 30% with 36,000 CPH.
Flexibility: Adapt to diverse PCBs and components.
Reliability: CE-marked for global standards.
Support: 24/7 hotline and on-site training.

Maintenance Tips

For optimal performance: Clean vision systems weekly, calibrate feeders monthly, and use clean air supply. Our service extends machine life by 20%, preventing common SMT issues.
