Rotary water curtain Dispensing glue

Product Number：SLF-100

Product Usage：The main uses of the water curtain dispensing valve include: 1. Precision dispensing: Applying precise amounts of adhesive in the assembly of electronic components, PCBs, semiconductors, etc. 2. Sealing: Providing sealing for automotive electronics, medical devices, home appliances to ensure waterproofing, dustproofing, and durability. 3. Bonding: Used in the consumer electronics and photovoltaic industries to bond various components, ensuring structural stability and reliability.

Applicable Industries：1. Electronics 2. Automotive manufacturing 3. Medical equipment 4. Consumer electronics 5. Photovoltaic industry 6. Home appliances

National Advisory Hotline：

+86 18975335491

Advisory

Product Details

Rotary water curtain Dispensing glue

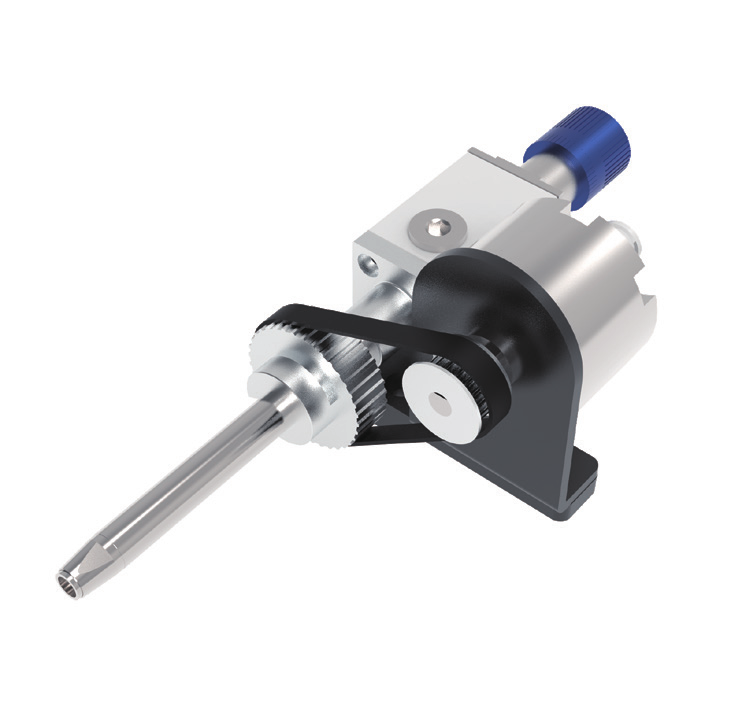

Model:SLF-100 Rotary water curtain valve

Product Features :

Non-fogging coating process with excellent edge definition. · Stainless steel fluid chamber, with excellent material compatibility · Multi-standard interchangeable coating nozzles , variable pattern width provides a variety of choices · Fast coating speed up to 450mm/S · Through optional closed-loop fan mode control, effectively enhanced Process control · Coating minimum thickness can reach 50um · Material utilization efficiency can reach over

Product advantages :

Coating by directly pressing the coating into a fan-shaped film can produce a sharp, fog-free low-viscosity fluid and coating flow. For solvent-based chemicals that require a wet film thickness of at least 100 centipoise, the precise coating process is Ideal choice.

Video introduction：

The 90° rotating water curtain valve is a non-atomizing water curtain coating valve for low-viscosity solvent-based materials, which is coated in the form of a water curtain.

It is suitable for a variety of liquids, such as three-proof paint, UV glue, adhesive, solvent/volatile materials and other surface coating materials. The sprayed products have no splash, no flash point, and neat edges. They are widely used in the electronic packaging industry, lighting industry, automotive industry, packaging industry, medical industry, and energy industry.

Technical Parameters:

name / model	90° swivel curtain valve
model	SLF-100
form	Membrane valve
Driving air pressure	0.4 ~0.6MPa
Spray width	6-19mm
Spray thickness	10-76μ㎡ _
Edge Tolerance	±0.75mm
Rotation angle	90 degrees
Fluid pressure range	100-410kpa
Maximum viscosity range 100mPas	Maximum viscosity range 120 mPas
weight	1.11KG
