JHIMS - Hot melt glue dispensing valve systems

Product Number：JH-PUR30CC、300CC-1、300CC-2

Product Usage：The hot melt adhesive pneumatic dispensing head precisely controls adhesive flow for efficient gluing, sealing, and bonding processes, ensuring high product quality.

Applicable Industries：Hot melt glue dispensing valves are widely used in consumer electronics, photovoltaics, automotive, and other high-precision industries, ensuring precise bonding and efficient production of components.

National Advisory Hotline：

+86 18975335491

Advisory

Product Details
Live Demo Video

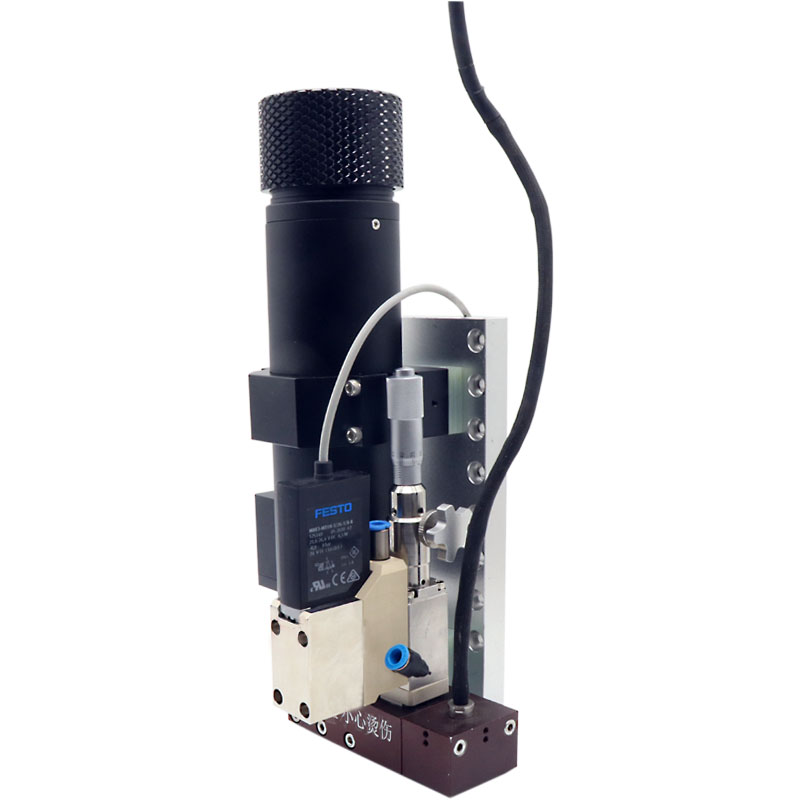

Hot melt glue dispensing system

hot melt glue dispensing systems put30cc

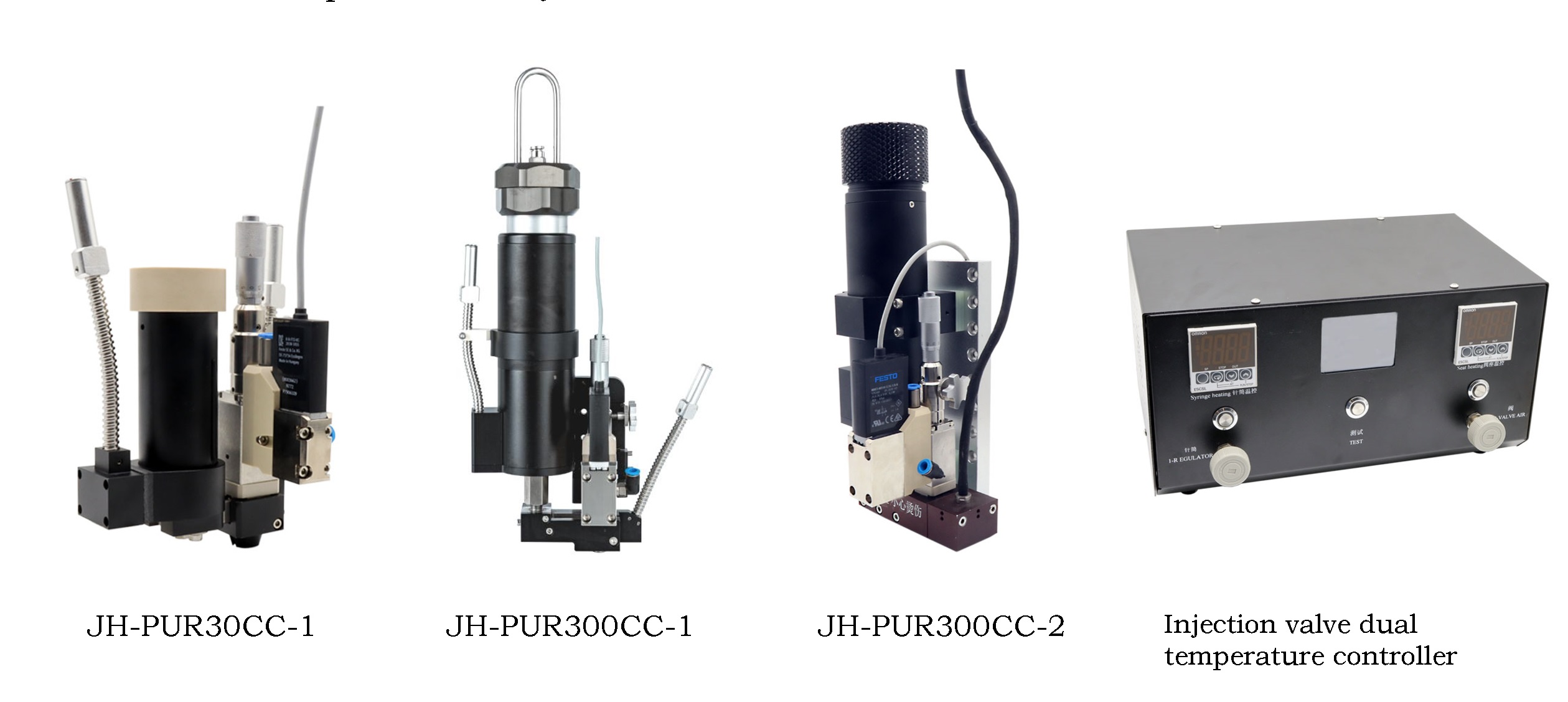

Ⅰ、Product Number:

JH-PUR30CC、300CC-1、300CC-2

Ⅱ、Product Overview:

The JH-PUR300CC-2 is a precision hot melt glue dispensing system designed to control the flow of adhesives, ensuring consistent performance for industrial applications like gluing, sealing, and bonding. The system integrates pneumatic control to deliver accurate and efficient glue dispensing, making it ideal for various industries.

Ⅲ、Key Features:

Modular Design: Easy to replace parts, ensuring flexibility in different processes.
Precision Control: Dispenses with accuracy up to 0.3nL, ensuring consistent results with 98% precision.
Customizable Nozzle: Available in sizes from 40µm to 500µm, with flat spray, needle, and extension types.
Heating Modules: Controlled heating at the nozzle and glue barrel maintains optimal adhesive performance.
Compatible Volumes: Supports 30CC, 100CC, and 300CC hot melt adhesives.
Durable and Efficient: Capable of handling high-demand operations with minimal downtime, and easy cleaning.

Ⅳ、Applications:

1. Consumer Electronics: Precision bonding for devices like smartphones, tablets, and TVs.

2. Photovoltaics (Solar Panels): Secure assembly of solar cells.

3. Automotive: Used in manufacturing for sealing and bonding car parts.

4. Other Industries: Energy, MEMS, RFID, optics, and more.

Ⅴ、Jet Valve Controller:

Touchscreen interface with graphic controls for easy operation.
Supports MES systems for enhanced safety and reliability.

Ⅵ、Application Fields:

SMT/FPC/PCB assembly, flat panel displays, semiconductor packaging, LED production, medical equipment, and seamless underwear industry.

This system combines precision, modularity, and efficiency, making it suitable for a wide range of industrial adhesive applications.

Ⅶ、Technical Parameters:

parameter	value
Product number	JH-PUR30CC/300CC-1/2
Dimensions (L * W * H)	116mm96mm218mm
weight	About 1.5g
Insulation block material	PEEK
Temperature measurement method	PT100
Rubber cartridge heating temperature	≤ 160 °C
Syringe air pressure	0~2.0Kpa
Dispensing accuracy	> 98%
Dispensing minimum line width	0.5mm
Viscosity range	1~10000Cps
Jet velocity	200 points / second
Body material	super hard stainless steel
Nozzle material	Tungsten steel
heating voltage	220V
Seat heating temperature	≤ 250 °C
valve air pressure	6.0~7.0Kpa
Dispensing amount	0.3nl
Maximum glue dispensing diameter	0.4mm
power source	dry compressed gas
Applicable liquid	Most hot melt adhesives, silica gel, red glue, epoxy resin, black glue, etc.
