Anda PS8000 YTS dispensing valve nozzle and tappet

Ⅰ The tappet and nozzle of ANDA dispensing machine

1. The tappet

The tappet is usually located inside the needle of the dispensing machine. It is a movable component responsible for controlling the flow of glue. Its main functions include:

Control the amount of glue: Through the up and down movement of the tappet, the amount of glue dispensed each time is accurately controlled to ensure that the amount of glue discharged meets the requirements.

Prevent dripping: When not dispensing glue, the tappet will close the needle to prevent glue from dripping.

Improve the accuracy of dispensing glue: The design of the tappet can effectively reduce the retention of glue at the needle and ensure the uniformity of each dispensing.

The material of the tappet is usually selected from corrosion-resistant and wear-resistant metals or alloys to ensure its stability and durability in long-term use.

2. Nozzle

The nozzle is the last link for the glue to be ejected from the dispensing machine to the target position. The design of the nozzle directly affects the shape, size and accuracy of the dispensing glue.

The main features include:

Nozzle caliber: The caliber of the nozzle determines the thickness of the glue. The smaller the caliber, the thinner the line of the glue. On the contrary, the larger the caliber, the more suitable it is for glue dispensing processes that require large-area coverage.

Material selection: Nozzles generally use wear-resistant and corrosion-resistant materials, such as stainless steel or special alloys, to adapt to the characteristics of different types of glue and extend service life.

Shape design: The shape of the nozzle has a variety of designs such as round and flat to adapt to different glue dispensing needs. For example, a round nozzle is suitable for dot dispensing, and a flat nozzle is suitable for line or surface dispensing.

3. The coordination of the tappets and the nozzle

In practical applications, the coordination of the tappet and the nozzle is crucial. Accurate tappet control and appropriate nozzle design can greatly improve the stability and accuracy of the glue dispensing process. Especially in situations where high-precision and micro-dispensing are required, the coordinated work of the two can ensure that every drop of glue can accurately reach the predetermined position.

The selection and design of the tappet and nozzle directly affect the working efficiency and dispensing quality of the glue dispenser, and are indispensable core components in the glue dispenser system.

Ⅳ Precision Tappet and Nozzles for Dispensing System advantages mainly include:

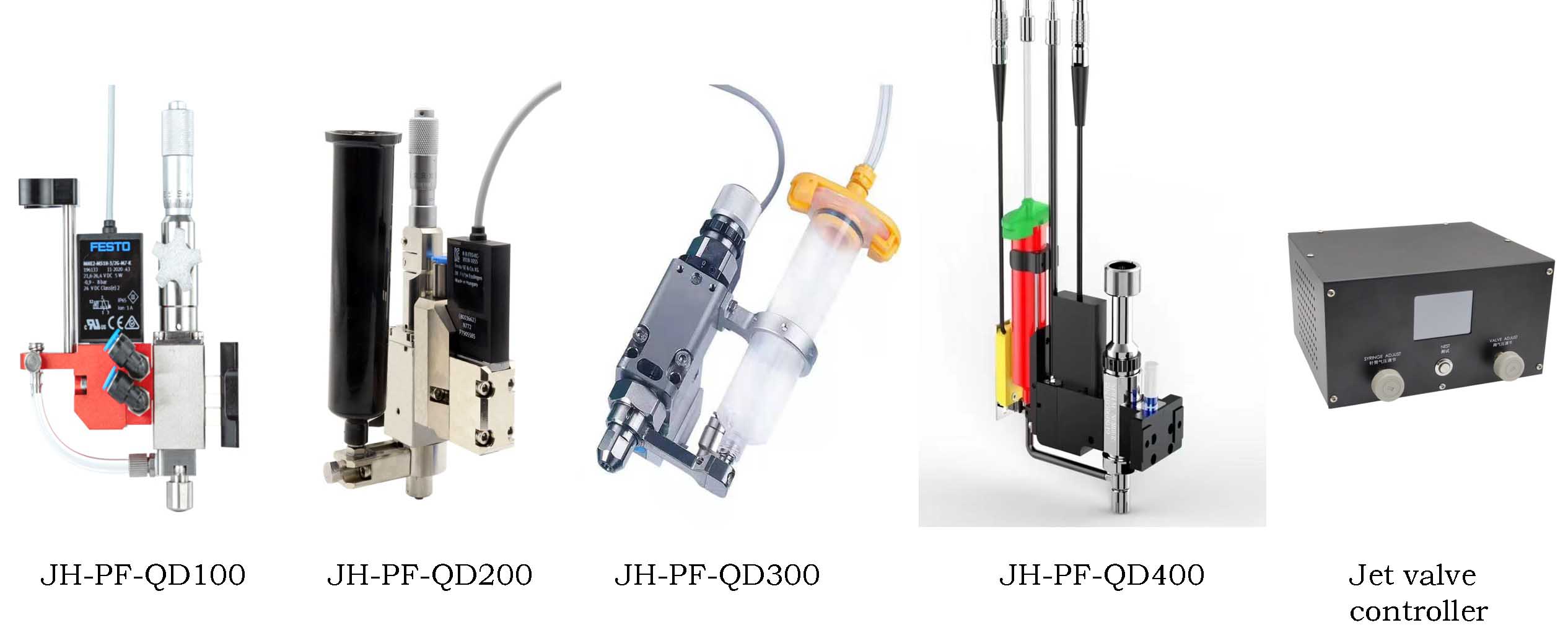

Ⅵ Different series of dispensing system nozzle

Ⅶ Dispensing nozzle and tappet manufacturing capabilities:

The accuracy of the nozzle pores can reach: 0.025mm

The nozzle finish can reach mirror surface: Ra0.1

Nozzle roundness/concentricity: 0.002mm

The annual output of nozzles can reach: 500,000 pieces

Customized products (processed according to drawings or samples), delivery time is completed within 5 to 10 working days

If all hardware parts cannot meet product requirements or have any problems, or are not genuine,or have poor material, etc., our company promises unconditional refunds and returns.

This site provides different brands of Tappet and Nozzles and supports product customization.The raw materials used are all high-hardness tungsten steel from Japan and the United States.

Ⅷ Video display:

The dispensing valve system should be used in SMT PCBA products
