Tappets and nozzles for MDS 3000 Series and MDS 1000 Series micro-volume dispensing systems
MDS 3000 Dispensing Tappet and Nozzle:
1. High precision: MDS 3000 series dispensing nozzles have excellent precision and repeatability, and can accurately control the amount and position of liquid injection. They are suitable for application scenarios that require high dispensing quality.
2. Flexibility: The dispensing system provides a variety of nozzle and tappet options to meet dispensing tasks with different viscosities, flow rates and accuracy requirements.
3. Reliability: Using advanced engineering design and materials manufacturing, MDS 3000 dispensing system tappets and nozzles have excellent durability and stability, and are suitable for long-term and high-volume production environments.
4. Automation integration: The tappet and nozzle of the dispensing system support integration with various automated machines, and can realize automated control and production line integration through various control interfaces to improve production efficiency and quality.
MDS 1000 Dispensing Tappet and Nozzle:
1. Affordable: The MDS 1000 dispensing system is an economical choice, suitable for cost-sensitive application scenarios, and can reduce investment costs without sacrificing quality.
2. Easy to use: This series of dispensing tappets and nozzles are simple in design, easy to install and operate, and can be used without complicated training. They are suitable for small production lines or applications that require quick replacement of dispensing valves.
3. Adaptability: MDS 1000 dispensing tappets and nozzles are suitable for a range of different glues and applications, and can meet the needs of common dispensing tasks, such as packaging, assembly, etc.
4. Reliability: MDS 1000 series dispensing valve nozzles have good reliability and durability and can meet the needs of general dispensing tasks.
In summary, the MDS 3000 series dispensing system nozzles and tappets are suitable for high-end applications that require higher accuracy and stability, while the MDS 1000 series dispensing valves are suitable for general points that are cost-sensitive and have less stringent requirements. Glue task, which series to choose depends on specific application needs and budget considerations.
Since there are many types of nozzles and Tappet used in dispensing machines, and the brands of dispensing machine Nozzles and Tappet are also different,some product dispensing nozzles and Tappet are displayed on the website. If you want to know about the nozzle and Tappet or dispensing valve system you need,please click WhatsApp or Telegram to contact customer service staff.

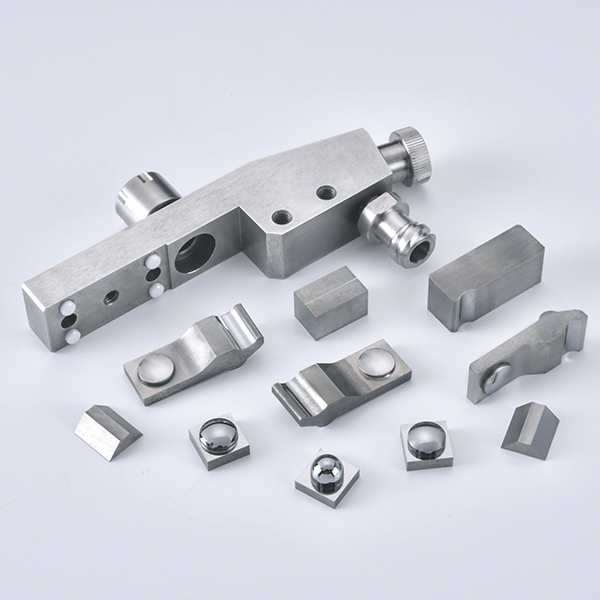

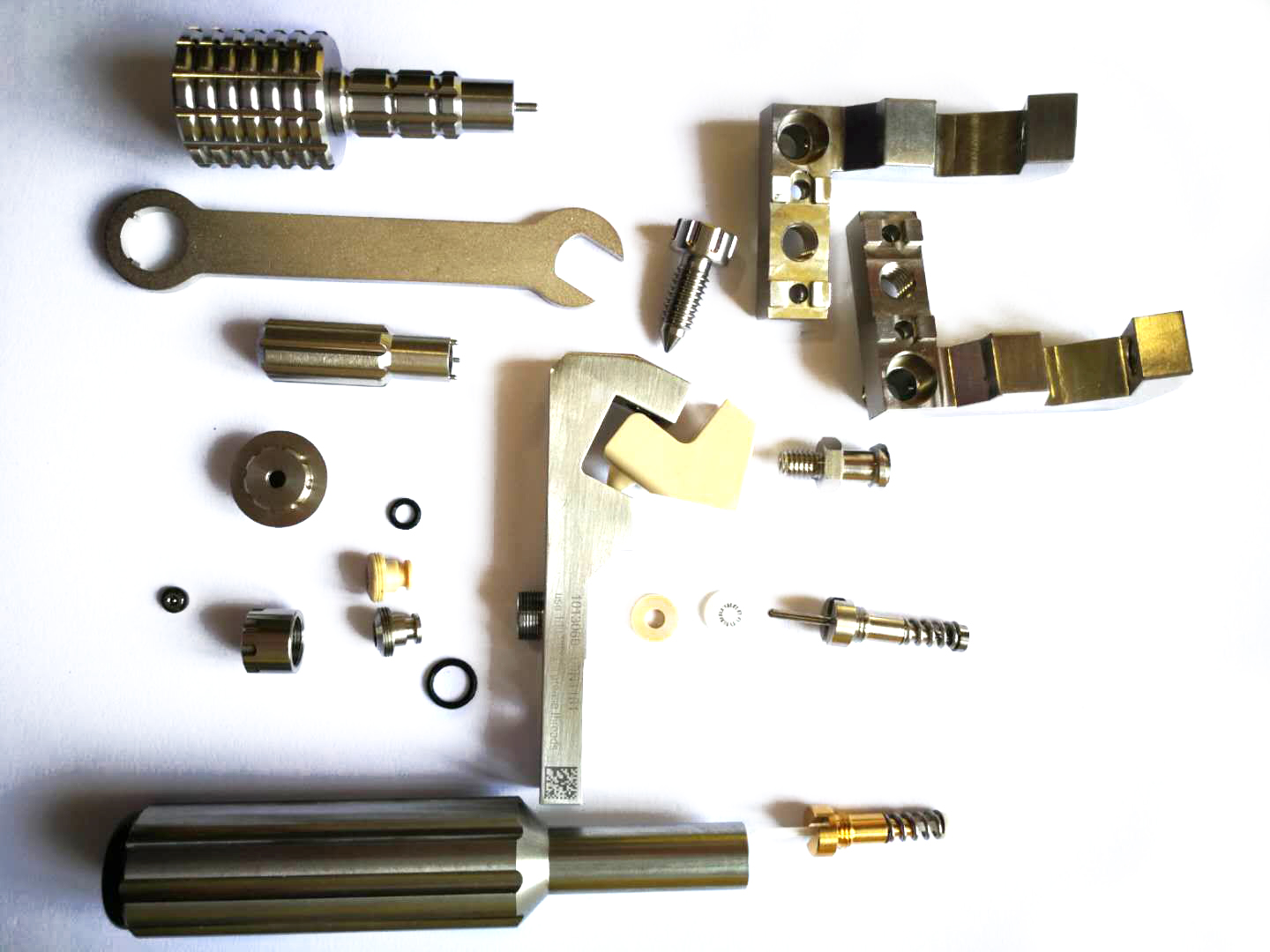

Other parts of the MDS 3000 dispensing system and MDS 1000 dispensing system

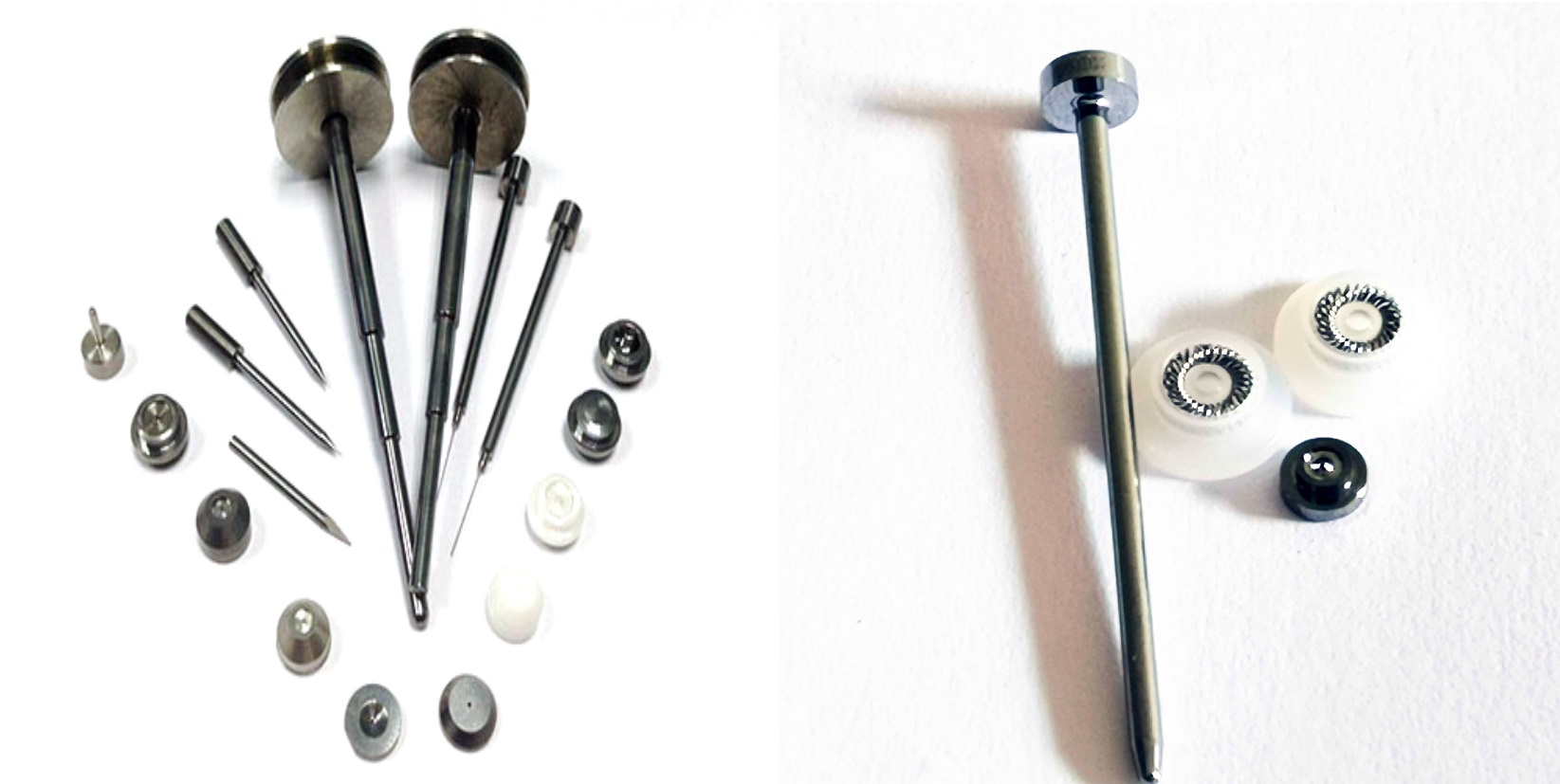

Nozzles and tappets for micro dispensing systems
Dispensing systems Nozzles is an all-round system for medium to high viscosity media. It is suitable for the application of a wide range of fluids, such as:
1.SMT Adhesives
2.Filled Conductive Glues
3.Silver Conductive Adhesives
4.Solder Pastes
5.Solder Fluxes
6.Silicones
7.LED-phosphor
8.Underfill materials
9.Hot Melts.
Dispensing systems Nozzles Major Advantages
Fast: Dispensing nozzles Opening and closing of the valve for max needle lift with more than 3000 Hz (Depending on application and Media), nonstop operation with up to 1000 Hz.
Versatile: Dispensing nozzles Freely adjustable parameter settings allow to customize the jet properties to the dispense fluid properties. Electronic control unit allows change of dispensing parameters without delay. Also compatible for low or medium viscous media (if the tappets are switched often or if the dispensing amounts are very small).
Precise: Dispensing nozzles High repeatability of drop-to-drop dispensing volume for media of all viscosity. Dispensing into cavities, grooves and irregular surfaces.
Powerful: Dispensing nozzles Converting the force of the latest generation piezo through sophisticated mechanics, the system can jet highest viscosity media with pressures of up to 1.000 bar.
Flexible: The modular design of the Nozzles and tappets for micro dispensing systems allows user defined configurations for various applications. You can adjust the same system to very different process and fluid parameters with the exchange of just a few parts. You can use a number of different nozzle units for a wide range of media and dot sizes. For the optimum performance it is possible to choose from different tappet geometries. You can choose from several different component materials, which allows for virtually unlimited media compatibility.
Dispensing machine tappets and nozzles are used in the following types of dispensing systems:
Since there are many types of nozzles and Tappet used in dispensing machines, and the brands of dispensing machine Nozzles and Tappet are also different,some product dispensing nozzles and Tappet are displayed on the website. If you want to know about the nozzle and Tappet or dispensing valve system you need,please click WhatsApp or Telegram to contact customer service staff.
Precision Tappet and Nozzles for Dispensing System advantages mainly include:
1. Non-contact injection: improves the accuracy and yield of dispensing, suitable for precision dispensing process.
2. High-speed spraying: can continuously operate high-frequency spraying glue, suitable for high-speed automated production lines.
3. Wide applicability: it can handle medium to high viscosity liquids and is suitable for a wide range of dispensing scenarios.
4. Precise control: by changing the driving voltage amplitude, frequency, duty cycle and other parameters, it realizes precise control of the glue droplet spraying performance.
5. Easy maintenance: simple structure, easy to disassemble and clean, reducing maintenance costs.
These advantages make the Dispensing System nozzle firing pin widely used in electronic manufacturing, LED packaging, medical equipment and other fields.
Introduction to precision tappets and nozzles
1.Precision tappets and nozzles for dispensing systems are divided into two types (contact nozzles and non-contact nozzles).
2.Non-contact nozzles are subdivided into pneumatic nozzles and piezoelectric nozzles.
This chapter describes pneumatic nozzles, in which the tappet is pushed by air pressure to hit the nozzle.
Different series of dispensing system nozzles
Different series of dispensing system tappets
Dispensing machine nozzles and lifters are usually used on various brands of dispensing valves. These dispensing valves can come from different manufacturers. Common brands include but are not limited to:
Nozzles and tappets for Nordson Corporation, Henkel (including its subsidiary Loctite), DELO, Dymax Corporation, ITW Dynatec, Robotic Solutions (Robatech), Valco Melton, Graco Inc., Sulzer Mixpac, Musashi Engineering, Asymtek (now part of Nordson ASYMTEK), Fisnar, Techcon Systems, PVA (Precision Valve & Automation), EFD (Dispensing Components Division of Nordson Corporation), GPD Global, DOPAG, MUSASHI, I&J Fisnar Inc., Scheugenpflug AG Dispensing machine
Dispensing nozzle and tappet manufacturing capabilities:
Nozzle/Tappet/screw hardware processing Processing and processing of customized drawings and samples according to customer needs
The accuracy of the nozzle pores can reach: 0.025mm
The nozzle finish can reach mirror surface: Ra0.1
Nozzle roundness/concentricity: 0.002mm
The annual output of nozzles can reach: 500,000 pieces
Customized products (processed according to drawings or samples), delivery time is completed within 5 to 10 working days
If all hardware parts cannot meet product requirements or have any problems, or are not genuine,or have poor material, etc., our company promises unconditional refunds and returns.
This site provides different brands of Tappet and Nozzles and supports product customization.The raw materials used are all high-hardness tungsten steel from Japan and the United States.
Dispensing system nozzle and tappet product application video display
