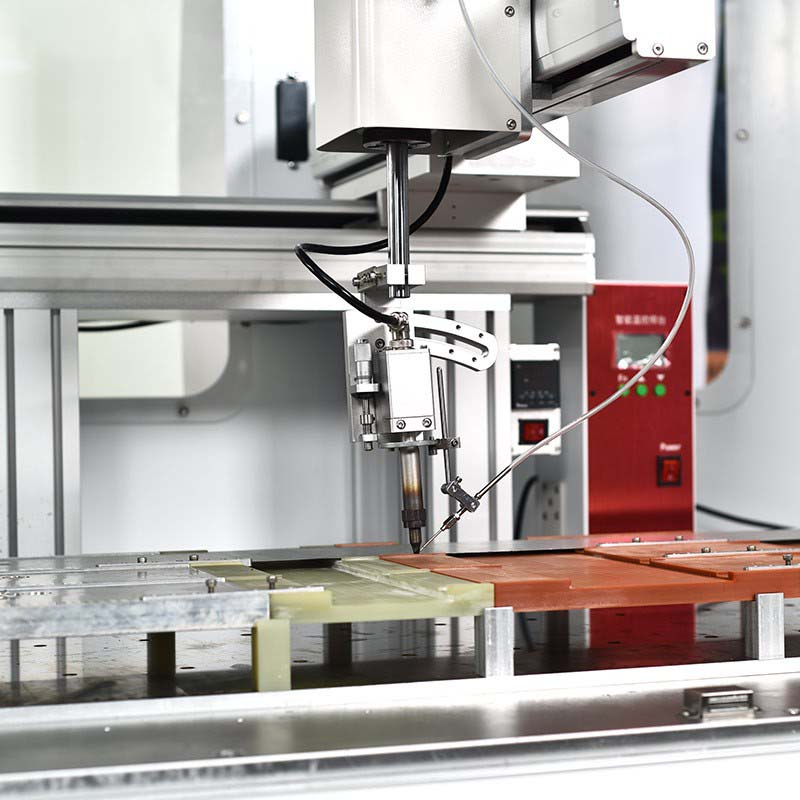

JHIMS | SMT PCB Automatic soldering machine

Product Number：AXJ-530

Product Usage：It is used to connect the pins or solder joints of an integrated circuit chip with the pads on the PCB to realize the electrical connection between the chip and the board.

Applicable Industries：SMT PCB high-precision automatic soldering machines are widely used in electronics manufacturing, automotive electronics, communications equipment, medical devices, consumer electronics and other industries.

National Advisory Hotline：

+86 18975335491

Advisory

Product Details

SMT PCB automatic soldering machine

An automatic soldering machine is a type of equipment used in the electronics manufacturing industry to perform soldering of printed circuit boards (PCBs) through automation. Below are the main advantages and features in an automatic soldering machine:

Ⅰ、Advantages

1. High degree of automation:

The equipment is programmed for automated operation and can precisely control the soldering parameters, such as temperature, time and position.

It can carry out soldering operation continuously and stably, which reduces the error of manual operation.

2. High efficiency:

Suitable for mass production, significantly improving production efficiency.

The multi-head soldering machine can perform multiple soldering joints at the same time, further improving work efficiency.

3. High quality soldering:

Precision control technology is used to ensure consistent quality of each solder joint.

Soldering temperature and time can be precisely controlled to avoid over-soldering or poor soldering.

4. Flexibility:

The welding path and parameters can be flexibly adjusted according to the design of different PCB boards.

Applicable to various types of electronic components, including SMD (surface mount devices) and THT (through-hole technology), etc..

5. Intelligent monitoring:

Equipped with advanced monitoring system, it can monitor the welding process in real time and find and correct problems in time.

With fault diagnosis and alarm function to ensure the stable operation of the equipment.

Ⅱ、PCB automatic soldering machine main function

1. Automatic tin supply:

The equipment is equipped with automatic tin supply device, which can precisely control the supply of tin wire as needed.

2. temperature control:

Through the high-precision temperature control system, it ensures that the soldering temperature is within the set range to guarantee the soldering quality.

3. multi-axis motion control:

The multi-axis motion control system can realize precise positioning and movement of the soldering head and adapt to complex soldering paths.

4. Visual inspection:

Some advanced equipments are equipped with visual inspection system, which can automatically recognize the position of solder joints and perform precise soldering.

5. Programming interface:

It supports parameter setting and path planning through programming interface, which is convenient for operation and adjustment.

6. Fast switching:

Supports quick change of soldering heads of different specifications to adapt to different types and sizes of PCB boards.

Ⅲ、Specification Table:

model	AXJ-530
Temperature Control System	WELLER
Heater	WELLER
Temperature adjustment range	0-500℃
Temperature error	±2℃
Travel range X/Y/Z (mm)	500/300/300/100 (Itinerary can be customized)
Maximum load	15kg
Moving speed	0-500
Decomposing ability	0.01mm/Axis
Repeat accuracy	±0.02 mm/Axis
Program recording mode	100 groups
Display method	LCD teaching box
Motor system	Japan micro stepping precision motor
guide	Bank of Taiwan
Belt	Italy Elate Synchronous Belt
photoelectric	Omron
Motion tweening functionMotion tweening function	3 axis
Input power	Full voltage AC110V-220V
External control interface	RS232
Body weight	69KG

Ⅳ、Applications

USB soldering machine, wire soldering machine, antenna soldering machine, spot soldering soldering machine, drag soldering soldering machine, PCB board soldering machine, circuit board soldering machine, integrated circuit soldering machine
