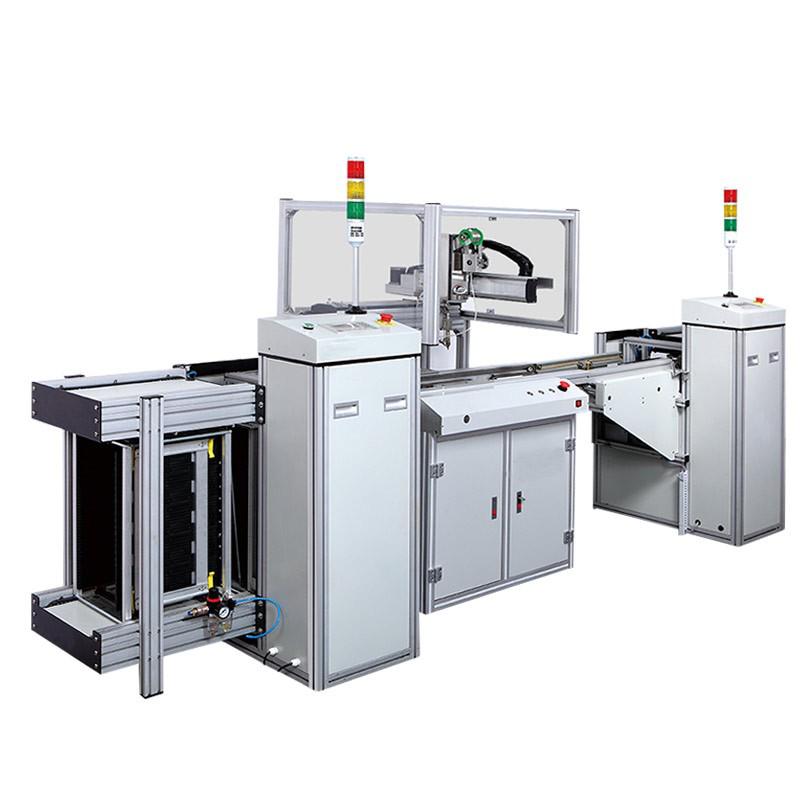

JHIMS | PCB SMD soldering machine production line

Product Number：HXJ-500

Product Usage：Online PCB high-precision automatic soldering machines are mainly used in electronic manufacturing to accurately, quickly and reliably solder various electronic components to printed circuit boards.

Applicable Industries：Consumer electronics: such as cell phones, tablet PCs, laptops, etc. Communication equipment: such as routers, switches, base stations and so on. Automotive electronics: such as vehicle electronic control unit (ECU), instrument panel, etc. Industrial control: such as industrial control motherboards, PLC controllers, etc. Medical electronics: such as medical diagnostic equipment, health monitoring equipment.

National Advisory Hotline：

+86 18975335491

Advisory

Product Details

Automatic PCB soldering machine line

An in-line PCB automatic soldering machine is a type of equipment used in the electronics manufacturing industry to perform soldering of printed circuit boards (PCBs) through automation. This kind of equipment is usually integrated in the production line of electronic products, which can greatly improve the productivity and soldering quality and reduce the manual intervention. Below are the main features and functions of in-line PCB automatic soldering machines:

Ⅰ、Main Advantages

1. High degree of automation:

The equipment is programmed for automated operation and can precisely control the soldering parameters, such as temperature, time and position.

It can carry out soldering operation continuously and stably, which reduces the error of manual operation.

2. High efficiency:

Suitable for mass production, significantly improving production efficiency.

The multi-head soldering machine can perform multiple soldering joints at the same time, further improving work efficiency.

3. High quality soldering:

Precision control technology is used to ensure consistent quality of each solder joint.

Soldering temperature and time can be precisely controlled to avoid over-soldering or poor soldering.

4. Flexibility:

The welding path and parameters can be flexibly adjusted according to the design of different PCB boards.

Applicable to various types of electronic components, including SMD (surface mount devices) and THT (through-hole technology), etc..

5. Intelligent monitoring:

Equipped with advanced monitoring system, it can monitor the welding process in real time and find and correct problems in time.

With fault diagnosis and alarm function to ensure the stable operation of the equipment.

Ⅱ、Online PCB automatic soldering machine main functions

1. Automatic tin supply:

The equipment is equipped with automatic tin supply device, which can precisely control the supply of tin wire as needed.

2. temperature control:

Through the high-precision temperature control system, it ensures that the soldering temperature is within the set range to guarantee the soldering quality.

3. multi-axis motion control:

The multi-axis motion control system can realize precise positioning and movement of the soldering head and adapt to complex soldering paths.

4. Visual inspection:

Some advanced equipments are equipped with visual inspection system, which can automatically recognize the position of solder joints and perform precise soldering.

5. Programming interface:

It supports parameter setting and path planning through programming interface, which is convenient for operation and adjustment.

6. Fast switching:

Supports quick change of soldering heads of different specifications to adapt to different types and sizes of PCB boards.

Through the use of in-line PCB automatic soldering machine, electronic manufacturing enterprises can improve production efficiency, reduce costs, and ensure the stability of product quality.

Ⅲ、PCB automatic soldering machine features:

Automatic circulation of vehicles

Each workstation can be spliced separately for flexible combination of different products, and it is also convenient to add soldering stations in the future.

LCD screen intuitive operation, easy to learn

High-speed drag welding, spot welding, diagonal welding can be performed on various workpieces

Suitable for mass production and assembly line work.

Ⅳ、Specification Table:

model	HXJ-500
Temperature Control System	WELLER
Heater	WELLER
Temperature adjustment range	0-500℃
Temperature error	±2℃
Travel range X/Y/Z (mm)	500/300/300/100 (Itinerary can be customized)
Maximum load	15kg
Moving speed	0-500
Decomposing ability	0.01mm/Axis
Repeat accuracy	±0.02 mm/Axis
Program recording mode	100 groups
Display method	LCD teaching box
Motor system	Japan micro stepping precision motor
guide	Bank of Taiwan
Belt	Italy Elate Synchronous Belt
photoelectric	Omron
Motion tweening functionMotion tweening function	3 axis
Input power	Full voltage AC110V-220V
External control interface	RS232
Body weight	69KG

Ⅴ、Applications

USB soldering machine, wire soldering machine, antenna soldering machine, spot soldering soldering machine, drag soldering soldering machine, PCB board soldering machine, circuit board soldering machine, integrated circuit soldering machine

Tag: JHIMS PCB SMD soldering machine production line

Previous：JHIMS | SMT PCB Automatic soldering machine

Next：JHIMS | Online PCB automatic soldering machine
