Product Number:JH-BQ-03

Product Usage:Automated label feeders are designed to automate the process of feeding and applying labels to products. They help in increasing efficiency, reducing manual labor, and ensuring consistent application of labels.

Applicable Industries:SMT label feeders are used in industries like automotive, consumer electronics, medical devices, LED lighting, IoT devices, communication equipment, and aerospace for precise, automated labeling of components to enhance production efficiency and accuracy.

National Advisory Hotline

National Advisory Hotline:

+86 18975335491
  • Product Details
  • Live Demo Video

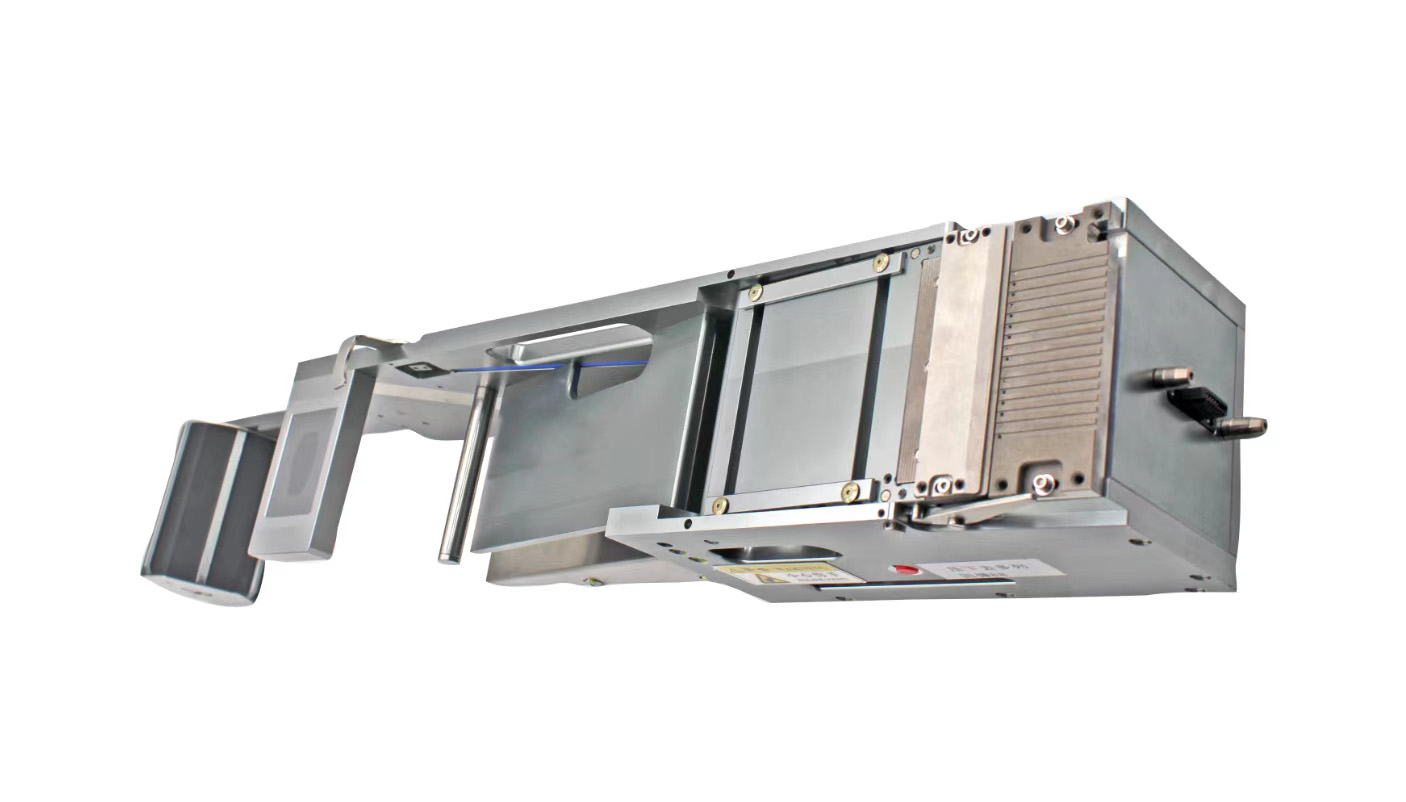

Automated Label Feeder for SMT Machines

Overview

The JH-BQ-03 Automated Label Feeder from JHIMS revolutionizes labeling in industries like automotive, electronics, and aerospace. These machines function as both label feeders and applicators, automating the entire labeling process from feeding to precise application, thereby enhancing efficiency and reducing labor costs. Perfect for high-speed SMT environments, they ensure precision and reliability.

Automated Label Feeder Machine in Action

Key Features

  • Label Roll Holder: Supports continuous operation with secure label roll management.
  • Feeder Mechanism: Seamlessly moves labels to the application point.
  • Applicator Types: Tamp, blow, or wipe options for precise placement.
  • Sensors: Guarantee accurate label positioning.
  • Control System: Programmable for various label sizes and positions.
  • Sticker Roll Holder: Organizes stickers for efficient application.
  • Control Panel: Intuitive interface for easy operation.
Sticker Feeder Machine Components

Applications

Our SMT Label Feeders excel in high-speed production, supporting SMT Pick and Place Machines. From High Accuracy Label Feeders to Heavy Duty models, they meet diverse needs across automotive, medical, and aerospace sectors.

Product Parameters

Parameter Value
Minimum Label Size 2mm x 2mm
Maximum Width 200mm (customizable)
Feeding Method Peel first, then absorb
Material Type Paper label, protective film, foam, double-sided tape, conductive adhesive, copper foil, steel sheet, reinforcement plate, and other roll materials
Backing Paper Width 10mm~60mm
Backing Paper Thickness ≤ 0.07mm
Base Paper Material PET plastic mold/paper tape release paper
Material Width ≥2m, ≤ base paper width
Material Thickness ≤ 10mm
Feeder Core Size Standard 3 inches
Dish Rack Load Bearing 1.5Kg MAX.
Receiving Platform Anti-sticking rubber/spray anti-sticking board optional
Material Positioning Method Fiber optic sensing + software compensation
Bottom Paper Method Bottom electric collection of base paper
Feed Position Accuracy ±0.2mm
Feed Position Adjustment Method X-direction mechanical limit component adjustment, Y-direction software adjustment, Z-direction mechanical adjustment
Input Power Specification DC24.0V | 2A MAX.
Input Air Pressure Specification Negative air pressure -60Kpa~-100Kpa
Hardware Communication Method GPIO
CPU 32-bit high-efficiency processor
Action-Driven Mode Electric
Operation Panel 3.5” TFT color screen, 480 x 320 pixels, resistive screen
Feeding Speed 12000 UPH MAX. (3MM*4MM reinforcement board test)
Standby Power Consumption < 20W
Operating Temperature -20~65℃
Working Humidity 20~90%RH, NO CONDENSATION
Storage Temperature -40~85℃
Storage Humidity 10~95%
MTPF ≥20K hrs. MIL-HDBK-217F (25℃)
Size 743.0MM * 97.0MM * 200.0MM
Quality Approx. 5.0 [Kg] without base

How It Works

The JH-BQ-03 Automated Label Feeder peels labels from the roll, positions them using advanced sensors, and applies them with precision via tamp, blow, or wipe applicators. This automation streamlines your manufacturing process, ensuring consistent and accurate labeling.

Frequently Asked Questions

What is an automated label feeder?
An automated label feeder is a machine that automatically feeds and applies labels to products, enhancing efficiency and accuracy in manufacturing processes.
Which industries use automated label feeders?
Industries such as automotive, consumer electronics, medical devices, LED lighting, IoT devices, communication equipment, and aerospace benefit from automated label feeders.
What are the key benefits of using JHIMS's automated label feeders?
JHIMS's automated label feeders offer high precision, durability, hands-free operation, and seamless integration with SMT machines, reducing labor costs and increasing productivity.

Customer Testimonials

"JHIMS's label feeder cut our labeling time by 50%. A game-changer!" - Jane Smith, Production Lead

"The precision and reliability of the JH-BQ-03 have significantly improved our production efficiency." - John Doe, Operations Manager

Why Choose JHIMS?

  • Durability: Built for long-term industrial use.
  • Hands-Free: Fully automated to save time.
  • Adaptability: Integrates with various SMT systems.

Ready to optimize your labeling? Contact us today!
