Product Number:JH-BQ-02

Product Usage:Pick and place machines of different brands such as yamaha, samsung, hanwha, fuji, panasonic, juki, ASM, etc. Pick and place machine,placement machine, labeling machine, labeling machine and non-standard automatic production line

Applicable Industries:SMT label feeders are used in industries like automotive, consumer electronics, medical devices, LED lighting, IoT devices, communication equipment, and aerospace for precise, automated labeling of components to enhance production efficiency and accuracy.

National Advisory Hotline

National Advisory Hotline:

+86 18975335491
  • Product Details
  • Live Demo Video

SMT Label Feeder for Fuji NXT & Panasonic NPM | JHIMS

JHIMS SMT Label Feeder for Panasonic NPM Pick and Place Machine JHIMS SMT Label Feeder for Fuji NXT Pick and Place Machine

Product Overview

The JHIMS SMT Label Feeder is a high-precision solution designed for seamless integration with Fuji NXT and Panasonic NPM pick and place machines. Featuring integrated molding to reduce installation errors and a compact design, it enhances productivity in electronics manufacturing, automotive production, and medical device assembly.

With customizable options, this feeder ensures accurate label placement, making it ideal for modern SMT production lines.

Key Features of the SMT Label Feeder

  • Unmatched Precision: ±0.2mm accuracy for reliable label placement.
  • Compact Design: Slim profile optimizes space in SMT setups.
  • Broad Compatibility: Works with Fuji, Panasonic, Yamaha, Juki, and more.
  • Advanced Sensors: Optical fiber and pulse compensation for precision.
  • User-Friendly: Programmable interface for easy operation.
  • Versatile Materials: Handles paper labels, films, foams, and adhesives.

Technical Specifications

Specification Details
Product Number JH-BQ-02
Material Aluminum alloy + stainless steel
Fixed Mode Dual-Pins and Rail Positioning, Lock Holder
PC Link Consistent with equipment standard feeder
Voltage Power supply for access to equipment
Rated/Peak Current 1A / 2A
Feeder Max Speed 80mm/s
Feeder Speed Up to 12,000 units per hour
Label Positioning Optical fiber positioning, Pulse compensation
Drive Roller Unit Forward push stripping
Refueling Method Stop and Manual Operation
Waste Recovery Yes
Feeding Method Peel first and then absorb
Material Compatibility Paper labels, protective films, foams, double-sided tapes, conductive adhesives
Precision Feed position accuracy of ±0.2mm
Operating Conditions Temperature: -20 to 65°C, Humidity: 20% to 90% RH

Applications

  • Electronics Manufacturing: Precise barcode and QR code placement for PCBs.
  • Automotive Production: Efficient labeling in high-volume lines.
  • Medical Device Assembly: Accurate medical-grade label application.
  • IoT Equipment: Reliable labeling for advanced devices.

JHIMS SMT Label Feeder in Action on a Production Line

Benefits

  • Efficiency: Automates labeling, reducing errors and boosting throughput.
  • Cost Savings: Eliminates standalone labeling machines.
  • Traceability: MES integration for real-time tracking.
  • Durability: Built for demanding industrial environments.

Why Choose JHIMS?

JHIMS delivers innovative SMT solutions with a focus on precision and efficiency. Our SMT Label Feeder integrates seamlessly with Fuji NXT and Panasonic NPM machines, offering unmatched reliability.

Ready to optimize your production? Contact us today.

Customer Testimonials

"The JHIMS SMT Label Feeder reduced our error rates and boosted productivity significantly." - John Doe, XYZ Electronics
"Seamless integration with our Fuji NXT machines and customizable options made this a perfect fit." - Jane Smith, ABC Automotive

Frequently Asked Questions

What machines are compatible with the JHIMS SMT Label Feeder?
It supports Fuji NXT, Panasonic NPM, Yamaha, Juki, and more with custom configurations.
How precise is the label placement?
The feeder achieves ±0.2mm accuracy, ideal for high-precision applications.
Can it handle different label materials?
Yes, it works with paper labels, protective films, foams, and adhesives.

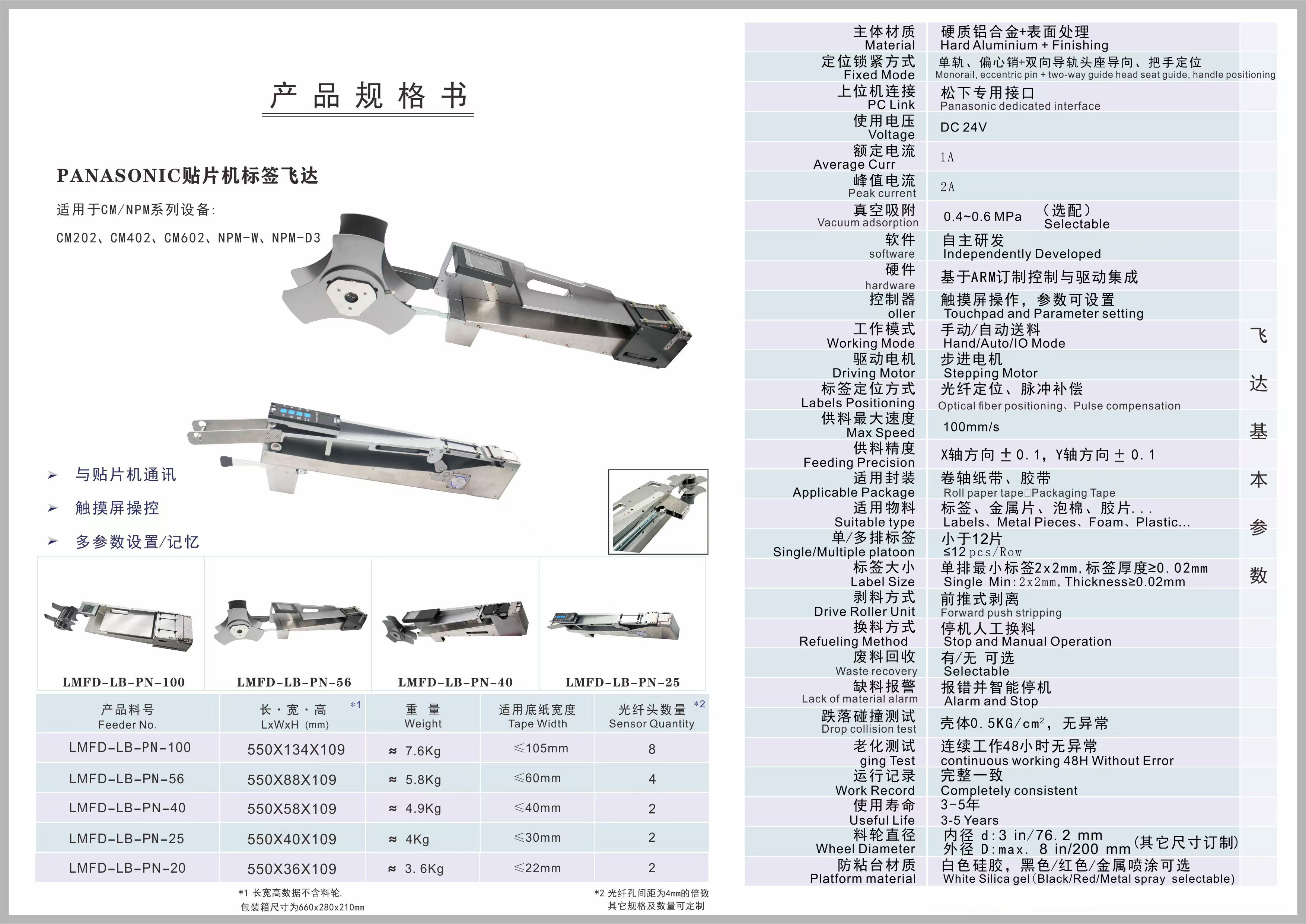

Panasonic NPM Label Feeder Technical Specifications
