Product Number:DPJ-25

Product Usage:Capacitor lead cutting vibration feeder

Applicable Industries:Electronic components and other industries

National Advisory Hotline

National Advisory Hotline:

+86 18975335491
  • Product Details
  • Live Demo Video

DPJ-25 High-Precision Capacitor Lead Cutting Machine

Our DPJ-25 automatic radial lead cutting machine offers unmatched precision and speed for trimming capacitors, inductors, and LEDs. With a vibration feeder, it processes up to 12,000 components per hour, perfect for electronic manufacturing.

DPJ-25 High-Precision Capacitor Lead Cutting Machine

Cutting Samples

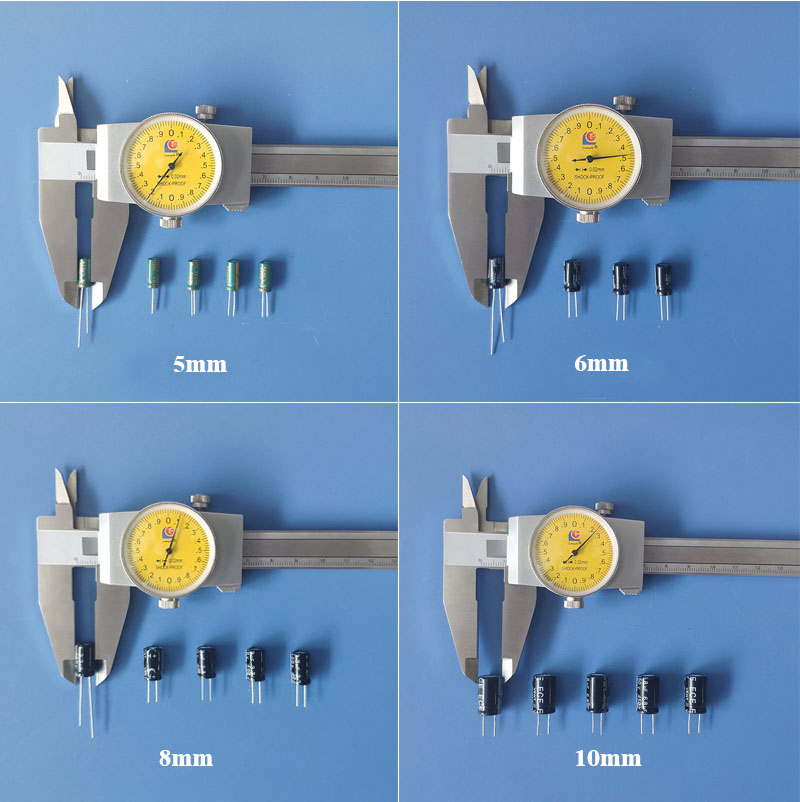

Capacitor Lead Cutting Samples with Vibration Feeder

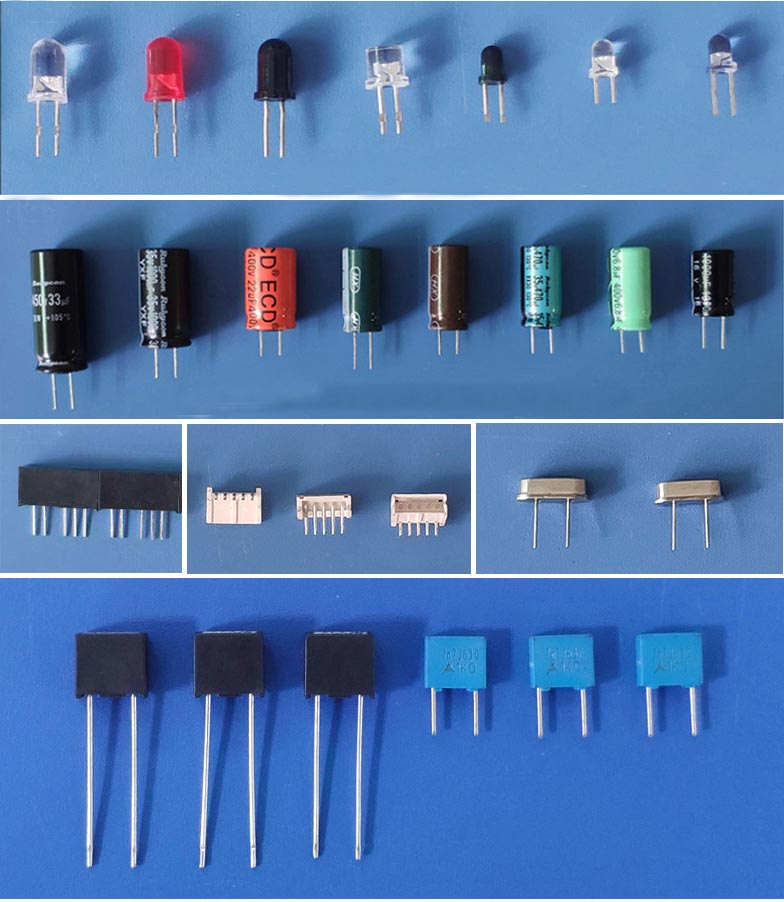

LED Lead Cutting Samples

Automatic Radial Lead Trimmer with Vibration Feeder

Boost efficiency with an optional vibrating bowl feeder for seamless automation of tube-mounted components.

Vibration Feeder for Radial Components

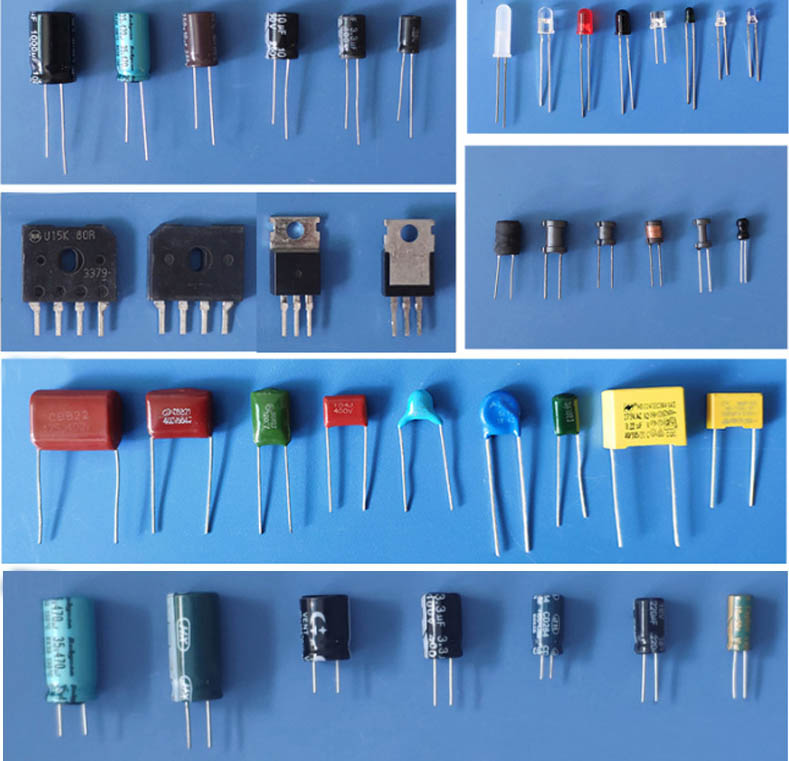

Component Compatibility

Handles electrolytic capacitors (Ø3-10mm, height ≤16mm), LEDs (Ø3-Ø5mm), and more, with customizable settings.

Electrolytic Capacitor Lead Cutting Compatibility High-Precision Capacitor Lead Cutting

Key Features

  • Versatile compatibility with capacitors, inductors, and LEDs
  • High-precision cutting (2.8±0.3mm) with Japanese steel blades
  • Compact design (L800 x W500 x H950mm) with trolley
  • Flexible electric or pneumatic drive options
  • Vibration feeder for automation
  • High-speed cutting: 7,000-12,000 components/hour

Benefits

  • Reduces manual handling for high-capacity production
  • Customizable precision for diverse applications
  • Durable, low-maintenance design by JHIMS

Capacitor Lead Cutting Machine

How It Works

The DPJ-25 uses a vibration feeder to align components, followed by precision cutting with adjustable blades, ensuring consistent results for high-volume production.

Technical Specifications

Specification Details
Power Supply 220V AC, 60Hz/50Hz
Dimensions L800 x W500 x H950mm
Weight Approx. 100kg
Cutting Precision 2.8±0.3mm (customizable)
Component Compatibility Capacitors Ø3-10mm, LEDs Ø3-Ø5
Cutting Speed 7,000-12,000 components/hour

Competitor Comparison

Feature DPJ-25 (JHIMS) Competitor A Competitor B
Vibration Feeder Yes (Tube-mounted) No (Taped only) Yes (Taped)
Cutting Speed 12,000/hr 30,000/hr 10,000/hr
Precision 2.8±0.3mm 3.0±0.5mm 3.0±0.4mm
Price $850 $1100 $980

Practical Applications

Ideal for electronics, aerospace, and telecom industries. See our case studies for real-world examples.

Why Choose DPJ-25?

  • Unmatched precision with cutting accuracy of 2.8±0.3mm
  • High-speed operation: up to 12,000 components per hour
  • Compact and portable design with trolley
  • Versatile compatibility with radial components

Frequently Asked Questions

  1. What components can the DPJ-25 handle?
    It handles electrolytic capacitors (Ø3-10mm), LEDs (Ø3-Ø5), and other radial components.
  2. Is the cutting precision customizable?
    Yes, standard precision is 2.8±0.3mm, customizable for finer cuts.
  3. What is the power requirement?
    Operates on 220V AC, 60Hz/50Hz.
  4. Can it be used with other components?
    Yes, with a customized vibrating bowl feeder, it can handle various components.

Product Gallery

Capacitor and LED Lead Cutter Trimmer LED Lead Cutting with Vibration Feeder
