Product Number:2P-DL500

Product Usage:The main purpose of the LED display module screw machine is to quickly and accurately install the screws on the LED display through automation technology. It can accurately locate each screw hole, automatically feed the screws and tighten them, thereby significantly improving production efficiency, reducing manual operation errors, and improving assembly quality. It is suitable for mass production and multiple specifications of LED displays. Through this automated assembly method, labor costs can be reduced, production cycles can be shortened, and the assembly consistency and reliability of each LED display can be ensured.

Applicable Industries:Screw tightening machines are widely used in industries such as automobile manufacturing, electronic products, home appliances, mechanical equipment, toys, furniture, medical equipment, aerospace and electrical equipment to improve production efficiency and ensure product quality.

National Advisory Hotline

National Advisory Hotline:

+86 18975335491
  • Product Details
  • Live Demo Video

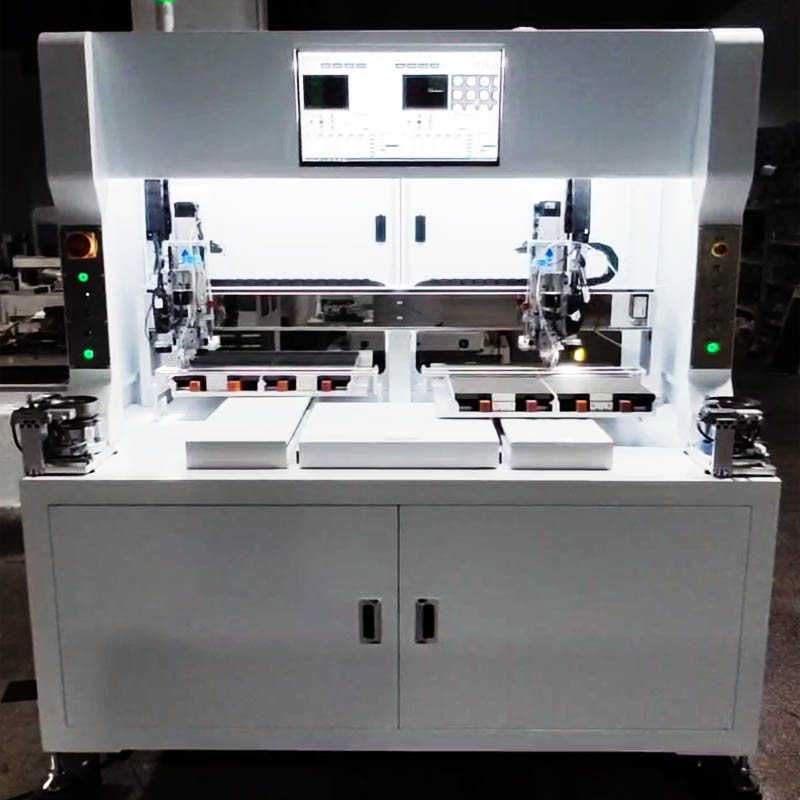

2P-DL500 LED Display Screw Tightening Machine

2P-DL500 LED Display Screw Tightening Machine by JHIMS

1.Product Overview

    The 2P-DL500 LED Display Screw Tightening Machine by JHIMS is an advanced solution designed to automate the assembly of LED display modules, including transparent grille displays. This high-precision equipment enhances production efficiency, reduces errors, and ensures consistent quality—making it ideal for modern advertising, digital signage, and information display applications.

2.Why Choose the 2P-DL500?

  • Efficiency: Speeds up assembly with automated screw feeding and locking.
  • Precision: Ensures accurate screw placement with advanced systems.
  • Reliability: Delivers uniform torque for consistent results.
  • Versatility: Supports various LED module sizes and screw types.

3.Working Principle

The automatic screw tightening machine operates through a seamless process:

  • Automatic Screw Feeding: Built-in feeder supplies screws to the head.
  • Precise Positioning: Advanced systems align the head with screw holes.
  • Screw Driving: Servo motor drives screws with controlled torque.
  • Quality Control: Sensors monitor and correct errors in real-time.

4.Key Features

  • High-precision screw guide and servo motor for repeatability (±0.02mm).
  • CCD visual system for Mark positioning and adaptive locking.
  • Dual workbench design for simultaneous, independent locking.
  • Integrated sheet metal frame for durability.
  • Air-blowing mechanism for efficient, stable locking (5000 pieces/hour).
  • User-friendly interface with CCD and CAD programming.

2P-DL500 LED Display Screw Tightening Machine Features

5.Technical Specifications

Attribute Details
Equipment Name Screw Tightening Machine
Model 2P-DL500
Dimensions 1700mm × 1150mm × 1850mm
Locking Efficiency 0.8-1.2 s/2pcs
Product Range 500x500 (Customizable)
Locking Modules Two Sets
Locking Method Chuck Lock
Screw Size M0.6-M2.0
Electric Type Servo Electric Lock
Feeding Method Vibrating Disc + Separation Nail
Repeatability ±0.02mm
Motor System Servo Motor + Ball Screw + Linear Track
Programming CCD Camera, CAD Import
Screw Detection Optical + Magnetic Ring Induction
Work Pressure 0.6MPa
Voltage AC220V 50Hz
Power <2KW
Pneumatic Component AIRTAC
Electronic Component CHINT
Linear Guide Taiwan Silver

6.Technological Innovations

  • Intelligent Control: PLC and HMI for precise operation.
  • Adaptive Feeding: Handles various screw sizes seamlessly.
  • Real-Time Monitoring: Sensors ensure quality control.
  • Automation: Adjusts to different module specs automatically.

7.Applications Across Industries

The 2P-DL500 excels beyond LED displays:

  • Electronics: Smartphones, tablets, and gadgets.
  • Automotive: Parts and assemblies.
  • Aerospace: Precision components.
  • Home Appliances: Washers, refrigerators.
  • Medical Devices: Delicate equipment.

8.Customer Testimonials

"The 2P-DL500 transformed our LED production line—faster and more reliable!" – LED Manufacturer, Shenzhen

"JHIMS’s screw machine cut our assembly time by 50%. Highly recommend!" – Digital Signage Supplier

9.Video Demonstration

10.Frequently Asked Questions

What is the cost of an automatic screw machine?

Common faults and solutions for screw locking machines

11.Contact Us

Ready to boost your LED display production? Contact JHIMS today for pricing and details!
