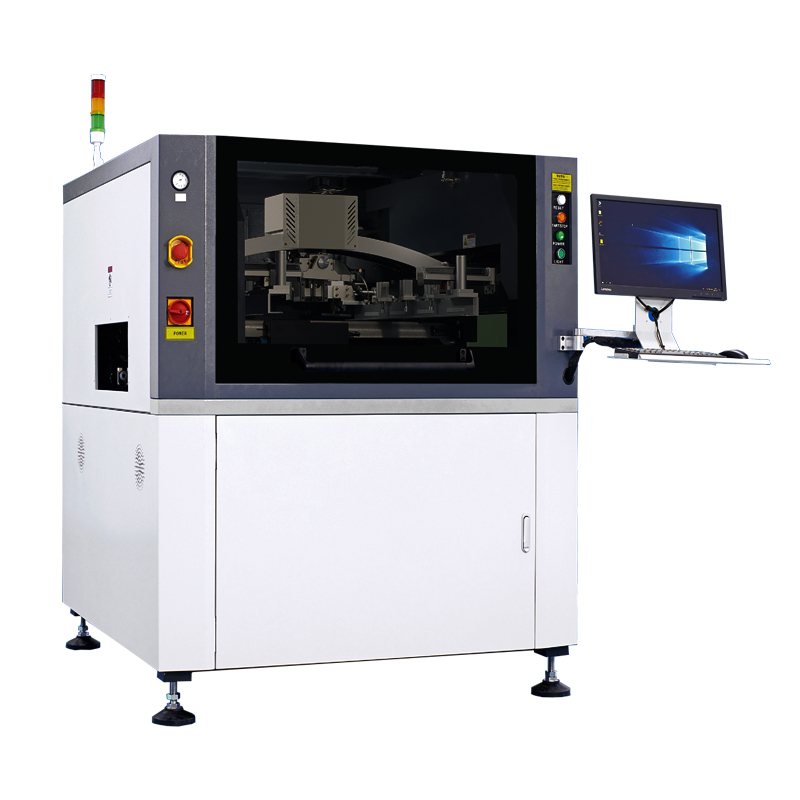

JHIMS M8 Automatic Vision Stencil Printer

JHIMS M8 Automatic Vision Stencil Printer

Product Number:M8

Product Usage:Capable of fully automatic printing of solder paste, paint, epoxy, and various other fluids.

Applicable Industries:The JHIMS M8 fully automatic visual printer is widely used in the production of smartphones, computers, servers, tablets, Mini LED displays, automotive electronics, medical devices, and aerospace electronics. It is specifically designed to meet the high-precision process requirements of 01005 components and 0.25mm pitch with equal spacing, making it ideal for Mini LED, server, and smartphone manufacturing.

National Advisory Hotline

National Advisory Hotline:

+86 18975335491
  • Product Details
  • Live Demo Video

JHIMS M8 Automatic Vision Stencil Printer

The JHIMS M8 Automatic Vision Stencil Printer is a cutting-edge solution for high-precision PCB assembly. Designed for efficiency and accuracy, it automates the application of solder paste, paint, epoxy, and other fluids, ensuring consistent quality in electronics manufacturing. With its advanced vision system, the M8 aligns circuit boards automatically, reducing manual intervention and minimizing errors. This printer is perfect for industries requiring meticulous detail, such as smartphone production, server manufacturing, and Mini LED display assembly.

Applications and Industries

  • Smartphones and Tablets
  • Computers and Servers
  • Mini LED Displays
  • Automotive Electronics
  • Medical Devices
  • Aerospace Electronics

The M8 is engineered to handle the demands of 01005 components and 0.25mm pitch spacing, making it an indispensable tool for modern electronics manufacturing.

Key Features

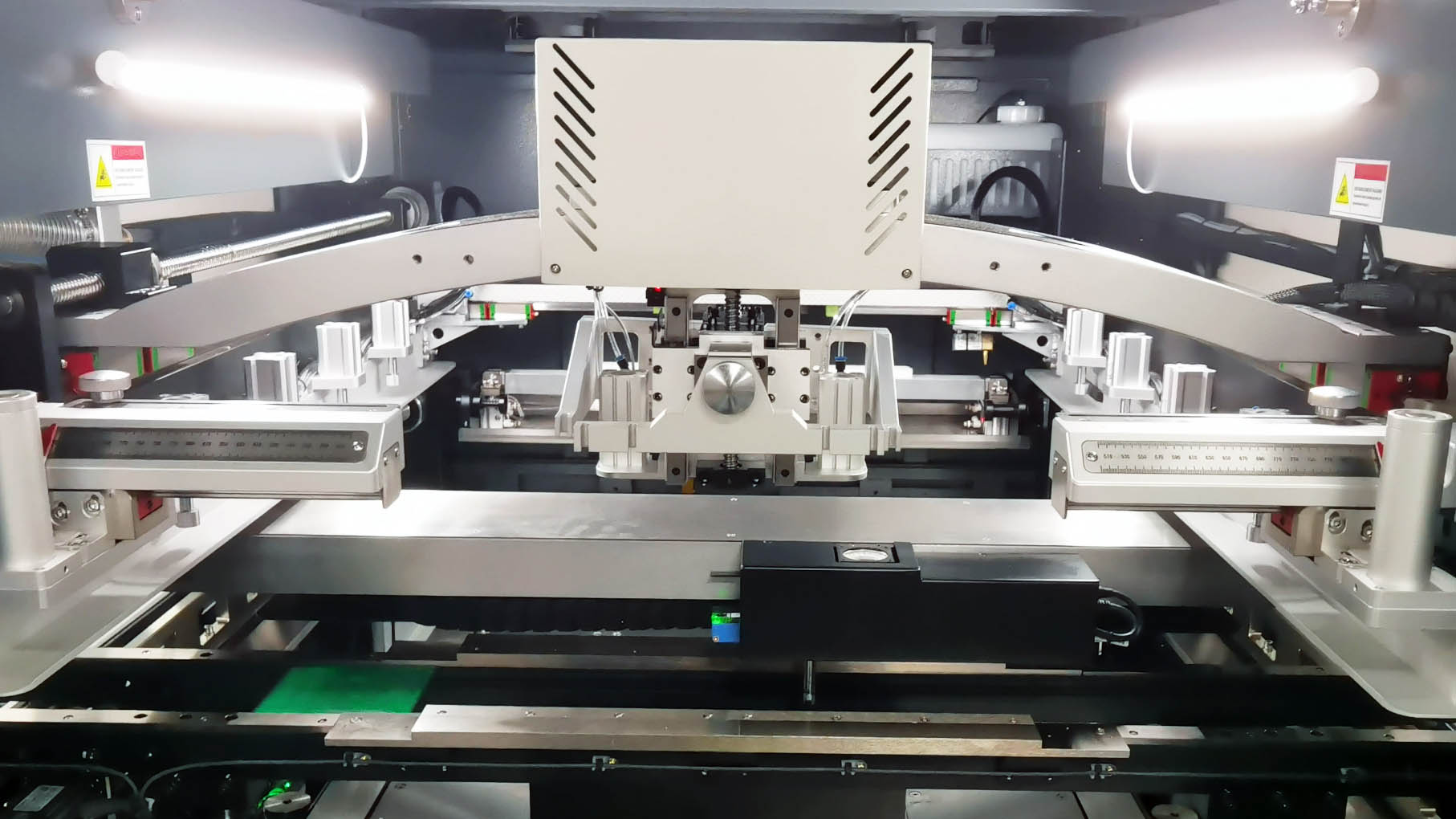

Intelligent Scraper System

Equipped with two independent direct motors and a precise pressure control system, the intelligent scraper ensures uniform application of solder paste, enhancing print quality and reducing waste.

JHIMS M8 Intelligent Scraper System for Stencil Printing

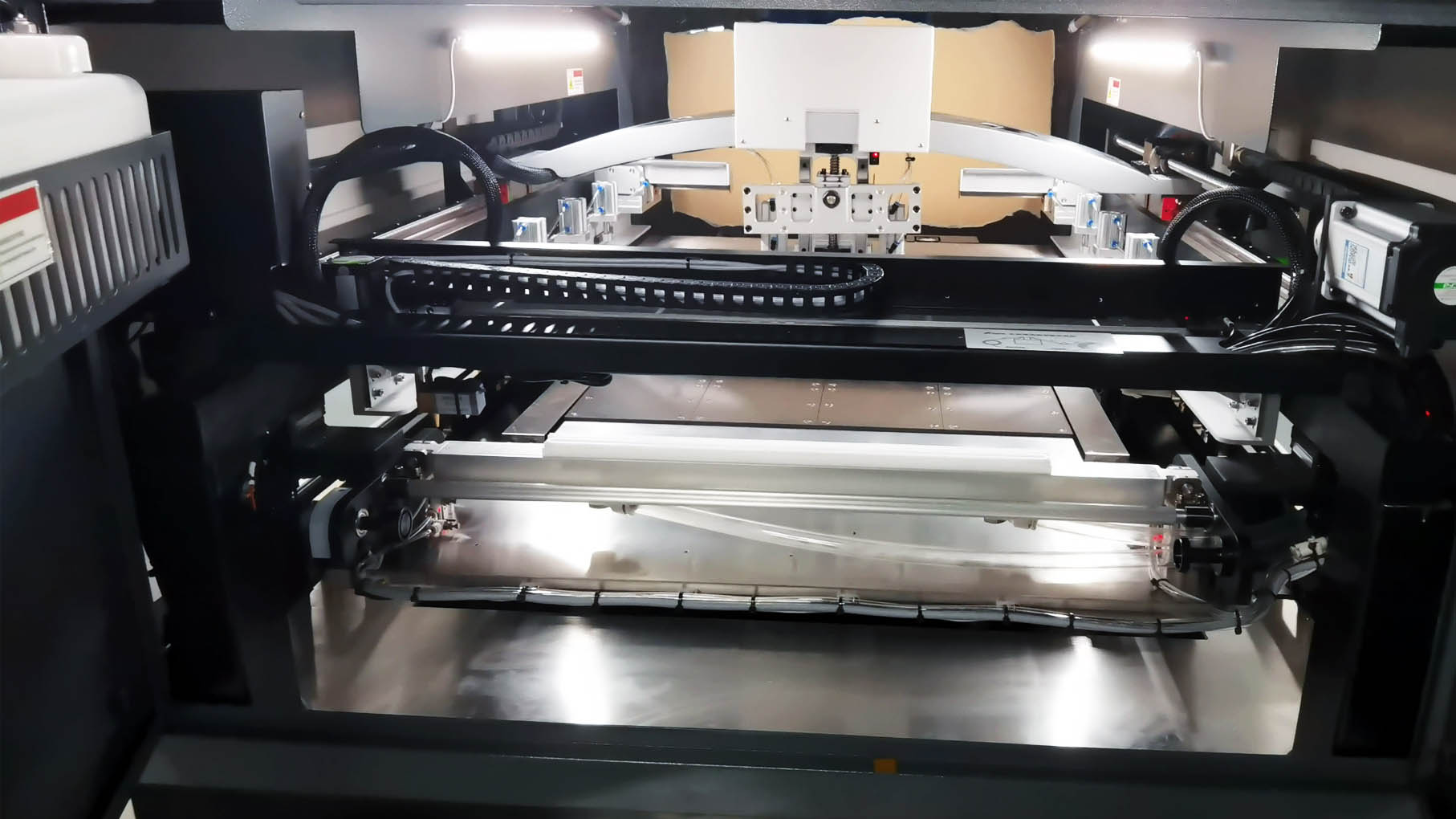

High-Efficiency Stencil Cleaning System

Featuring dry, wet, and vacuum cleaning methods, this system maintains stencil integrity, ensuring consistent performance and reducing downtime for maintenance.

High-Efficiency Stencil Cleaning System for JHIMS M8 Printer

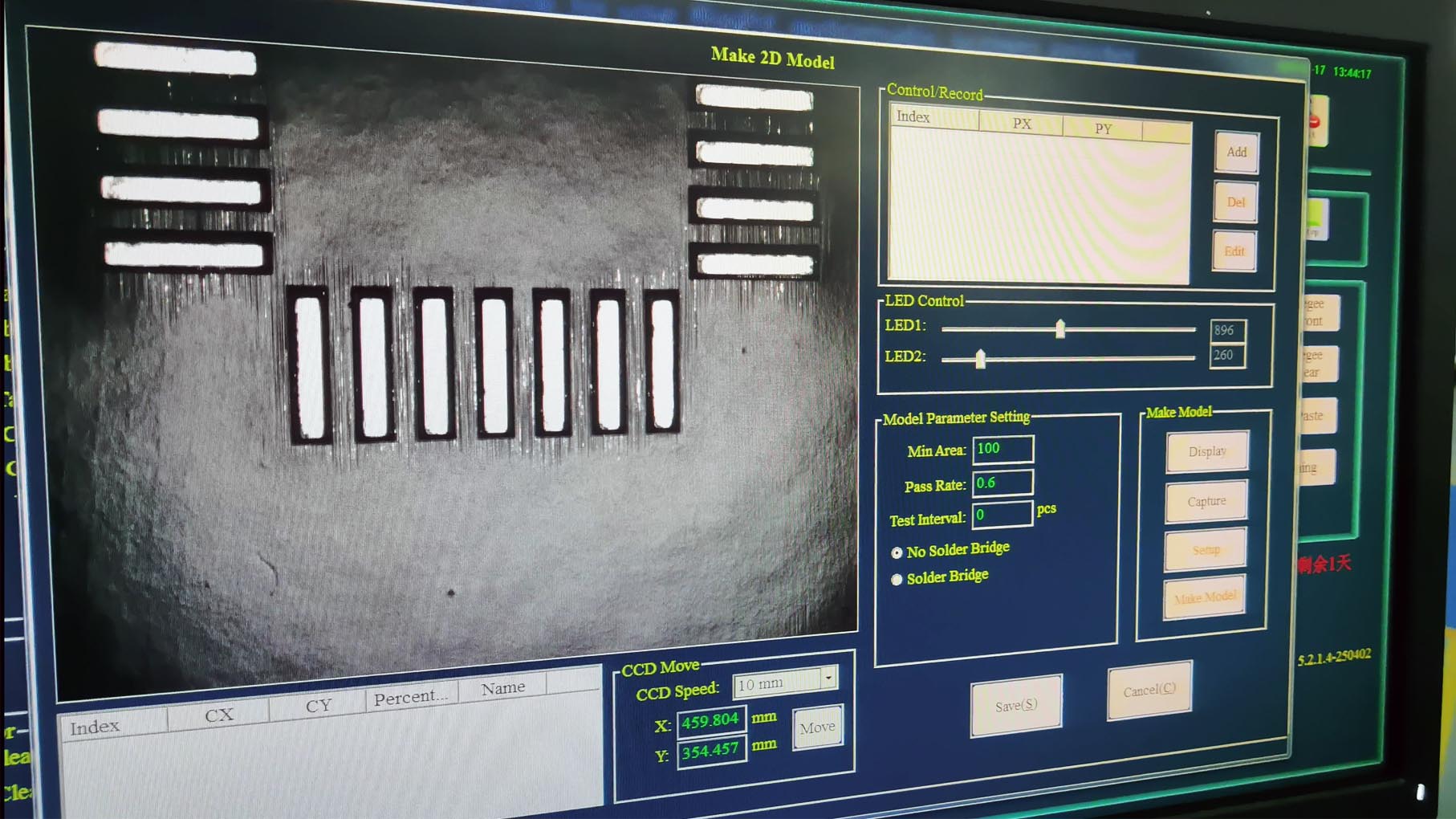

2D Solder Paste Printing Quality Inspection

With real-time detection of printing issues like offset and insufficient tin, the 2D inspection system guarantees high-quality output, supported by SPC software for process control.

2D Solder Paste Inspection on JHIMS M8 Printer

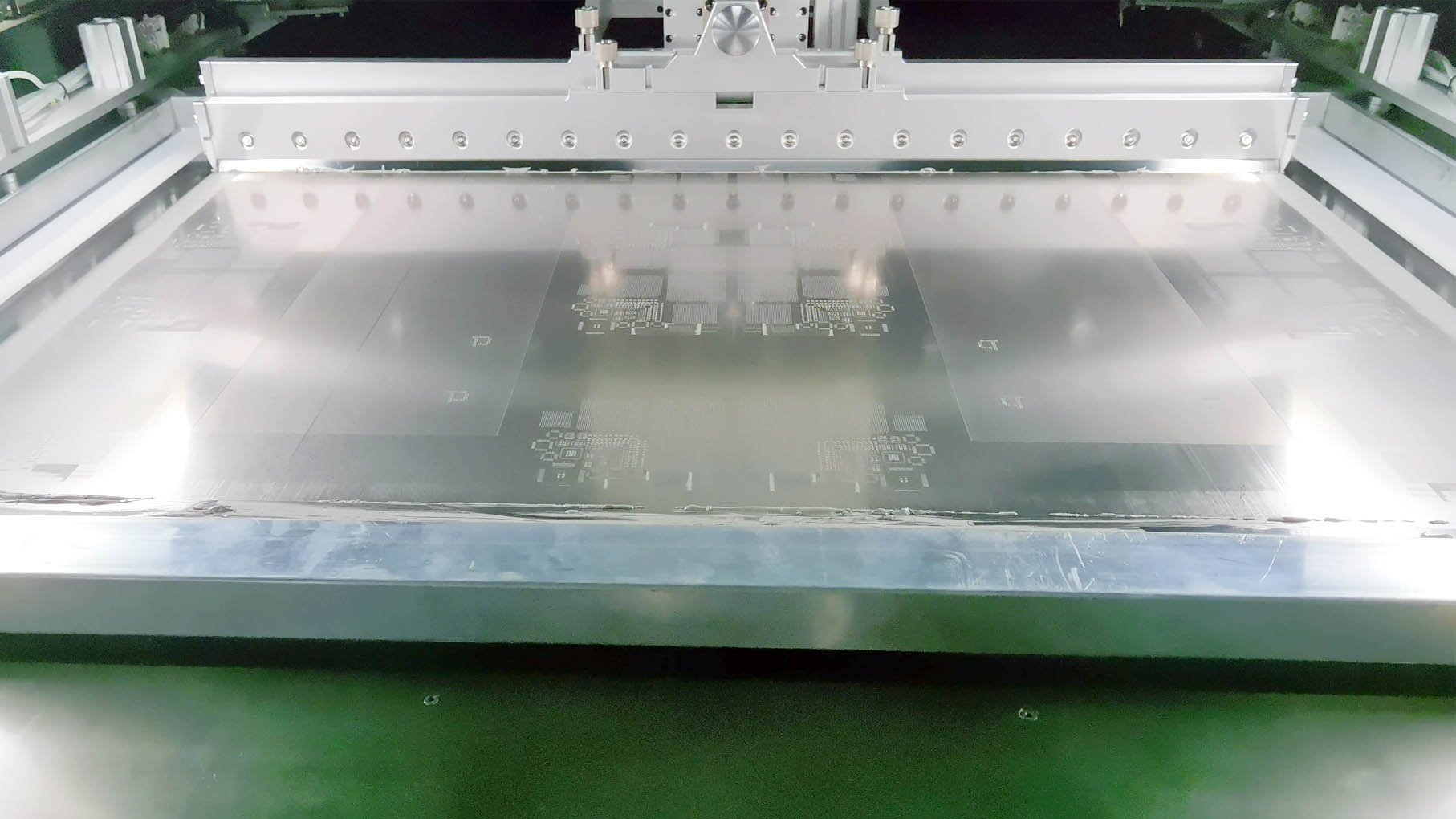

Extra Large PCB Size Support

Capable of handling PCBs up to 650mm × 610mm, the M8 accommodates a wide range of electronic products, from consumer devices to industrial equipment.

JHIMS M8 Printer Handling Extra Large PCBs

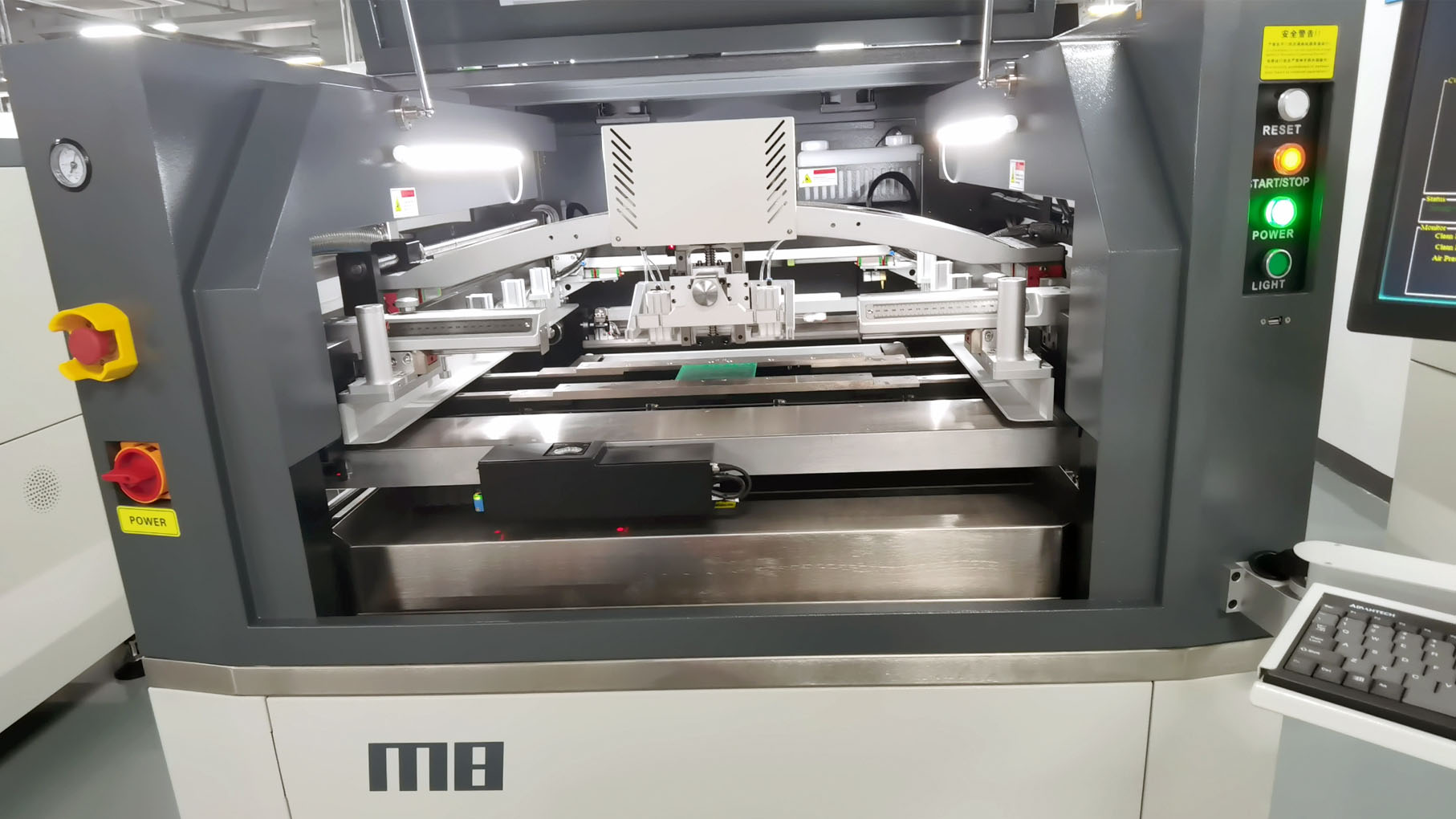

Accurate Optical Positioning System

Four adjustable light sources provide optimal illumination for precise mark recognition, supporting various PCB types and surface finishes.

Accurate Optical Positioning System of JHIMS M8 Printer

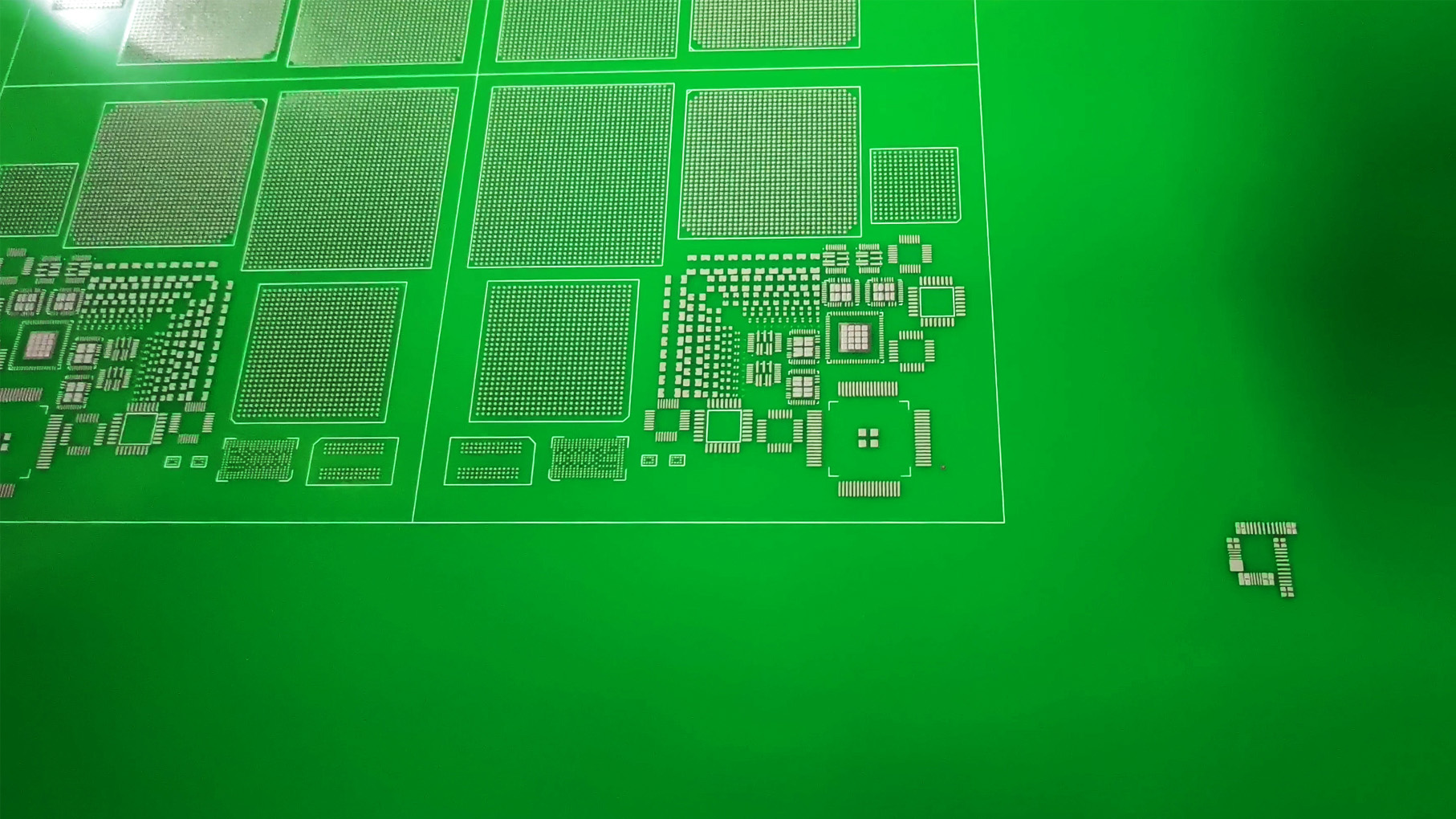

High-Precision Printing Quality

Achieving ±0.025mm accuracy, the M8 ensures meticulous solder paste application, meeting the stringent requirements of precision electronics manufacturing.

High-Precision Solder Printing with JHIMS M8

Technical Parameters

Fully Automatic Visual Printer Specifications
Parameter Specification
Model M8
Screen Frames
Min Size 520x400mm
Max Size 850x850mm
Thickness 20-40mm
Stencil Position Mode Automatic Y-direction positioning
PCB Board Parameters
PCB Min Size 50x50mm
PCB Max Size 650x610mm
PCB Thickness 0.4~6mm
PCB Warpage <1%
PCB Board Edge Clearance 2.5mm
Board Height 30mm (Beyond Custom Needles)
Transport Height 900±40mm
Transport Direction Left-Right; Right-Left; In and out the same
Transport Speed Segment control, 1500mm/s (Max)
Transport Mode One section transportation track
PCB Support System Magnetic Pin, Support Block, Automatically adjustable platform height
Maximum PCB Board Weight 7kg
Printing Parameters
Printing Speed 10-200mm/sec
Printing Pressure 0.5-25kg
Printing Mode Single or double squeegee printing
Release Distance 0-20mm
Release Speed 0-20mm/sec
Snap-Mode Three stage demolding
Squeegee Type Rubber squeegee/Steel squeegee (Angle 45°/55UCCESSIVE/60°)
Printing Accuracy
Repeat Position Accuracy ±0.01mm
Printing Accuracy ±0.025mm
Cycle Time (Excluding Cleaning) 8s
Cycle Time (Including Cleaning) 16s
Changeover Time 5Min
Cleaning Parameters
Cleaning Method Spraying cleaning system, Dry wipe, wet wipe, vacuum three modes
Cleaning Stroke Automatic generation
Cleaning Position Post cleaning
Cleaning Speed 10~200mm/sec
Cleaning Fluid Consumption Auto & Manually adjustable
Cleaning Paper Consumption Auto & Manually adjustable
Image Parameters
CCD FOV 10*8mm
Camera Type 1.30 megapixel digital camera
Camera System Geometric matching, up and down imaging vision
Camera Cycle Time 150ms
Fiducial Mark Types Standard Fiducial Mark Shape (□square, Ocircle, △triangle, ◆diamond shaped, +ten cross, welding, opening, Pad, profile, hole)
Mark Size 0.1~6mm
Stay Away Number Max: 1pcs
Mark Number Max: 4pcs
2D Detection Detect low tin/missing print
Function Configuration
Safety Control Door open to stop, abnormal alarm
Smart UI Brand new interface, shortcut key operation
Permission Setting Freely set, authority division for operators, technicians, and engineers
Standard MES System Customized Industry 4.0 solutions, records SOP and equipment data
Temperature and Humidity Detection (option) Real-time display of equipment indoor temperature and humidity
SPI Connection (option) Automatic compensation for offset, detection of less tin, automatic steel mesh cleaning
Automatic Tinning (option) Filling 500g universal automatic tinning (single can)
Steel Mesh Detection System (option) Real detection of steel mesh blockage, automatic feedback alarm
Automatic Dispensing System (option) Automatically applies red glue and solder paste
In Series Two machines printed in tandem to increase productivity
Equipment Parameters
Air Required 4-6Kgf/cm2
Air Consumption About 5L/min
Working Temperature -20℃~45℃
Working Environment Humidity 30%~60%
Power Input AC:220±10%, 50/60HZ 3KW
Control Method PC Control
Machine Weight Approx: 1200Kg
Machine Dimensions 1330(L)x1545(W)x1500(H)mm

Download detailed technical parameters

Contact Us

For more information or to schedule a demo, contact us at +86 18975335491 or email info@jhims.com.
