JHIMS | Inline Tunnel type UV curing oven

Product Number：UV2000

Product Usage：The main purpose of an inline UV curing oven is to rapidly cure UV-sensitive materials such as coatings, inks, and adhesives in industrial production, enhancing efficiency and product quality.

Applicable Industries：Inline UV curing ovens are primarily used in industries such as electronics, printing and packaging, automotive manufacturing, optoelectronics, and furniture, where surface treatment and rapid curing are required. New material testing and development, PCB repair, electronic equipment repair, etc. uv glue/ink curing, various UV glue/ink/green oil/coating/three-proof paint/varnish curing.

National Advisory Hotline：

+86 18975335491

Advisory

Product Details

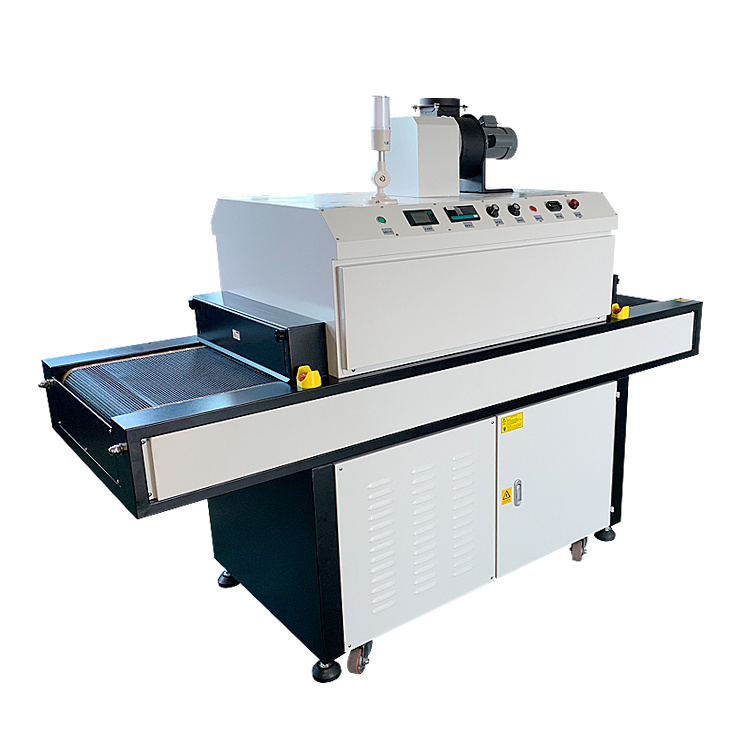

Inline Tunnel type UV curing oven

Inline_Tunnel_type_UV_curing_oven

Ⅰ、Product description

JHIMS UV2000 online UV tunnel furnace is a special machine that uses infrared radiation to heat the workpiece being processed. The UV tunnel furnace has the characteristics of fast heating, high thermal efficiency, and energy saving. At the same time, it can meet the heating requirements of products of various materials and shapes. Generally speaking, it is a mechanical equipment for surface treatment that can emit strong ultraviolet rays that can be used. It is generally called UV light curing machine (UV curing machine, cornerstone technology UV machine, UV light curing box, UV machine). UV light curing furnace is mainly used in the printing and coating industries. Ultraviolet light curing is currently a relatively environmentally friendly UV coating (UV ink, UV varnish, UV resin, etc.) drying method, which meets the main requirements of the National Health and Environmental Protection Organization.

Ⅱ、Product features

1. New dedicated intelligent control system, designed and manufactured for various batch production/assembly lines, automated production line design and manufacturing, fast docking automated production line;

2. Air-cooled uv led curing box, with timing control function and remote communication RS232 signal;

Ⅲ、Product parameters

Product name: Inline Tunnel type UV curing oven

Product model: UV2000

Appearance size: 2000mm*700mm*1460mm

Conveyor belt size: 100-500mm*1200mm

Light source configuration: 400mm*100mm

Peak wavelength: 365nm (customizable)

Heat dissipation method: air cooling

Energy uniformity: >85%

Operation system: PLC intelligent control system

Special functions: energy regulation, speed regulation, inlet and outlet height adjustment, conveyor belt width adjustment, fault alarm, emergency stop, remote control.

Industry classification: UVLED equipment

Industry application: UV glue curing UV ink curing UV varnish UV coating

Tag: JHIMS Inline Tunnel type UV curing oven
