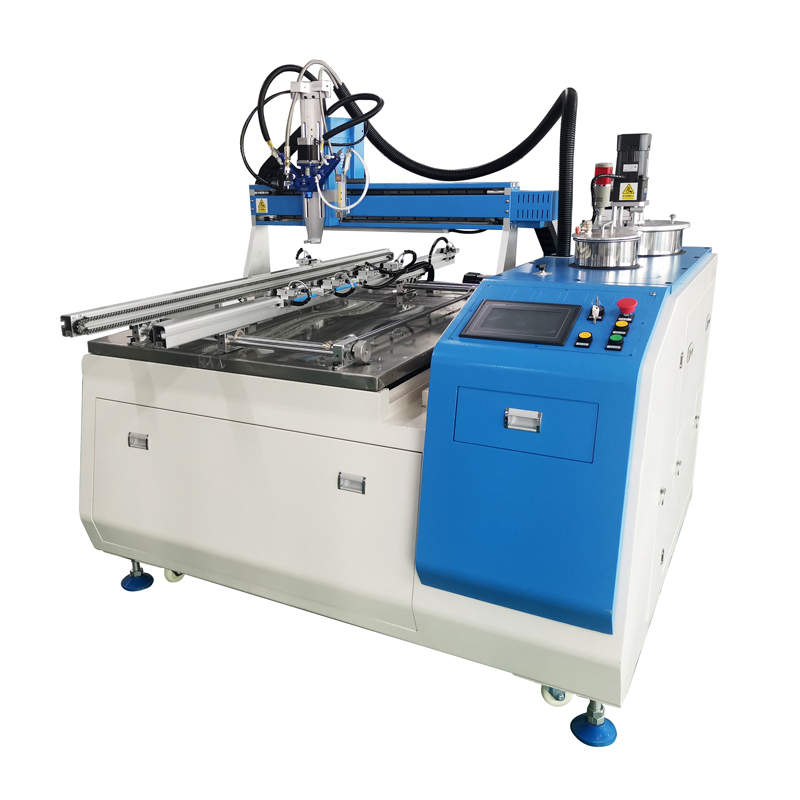

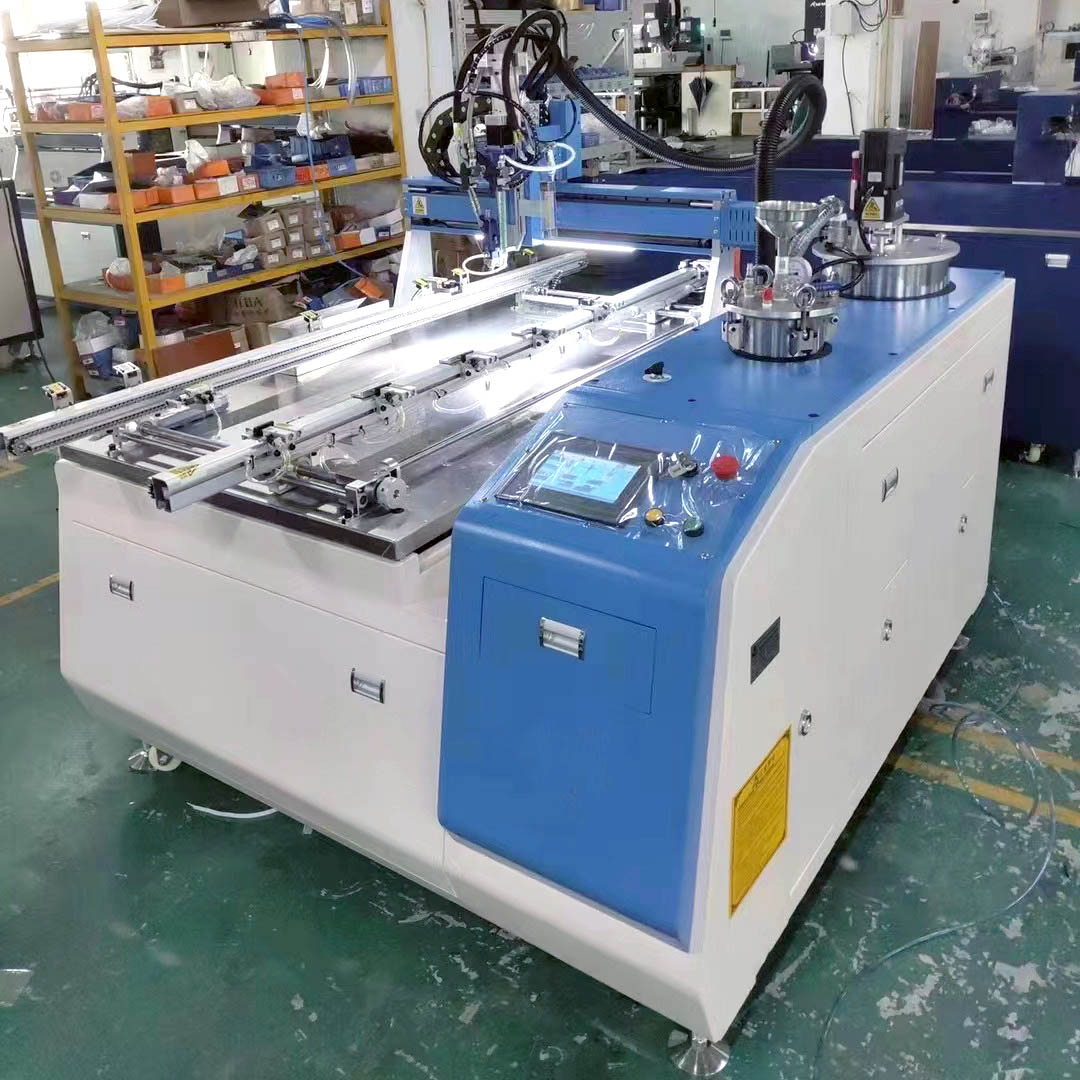

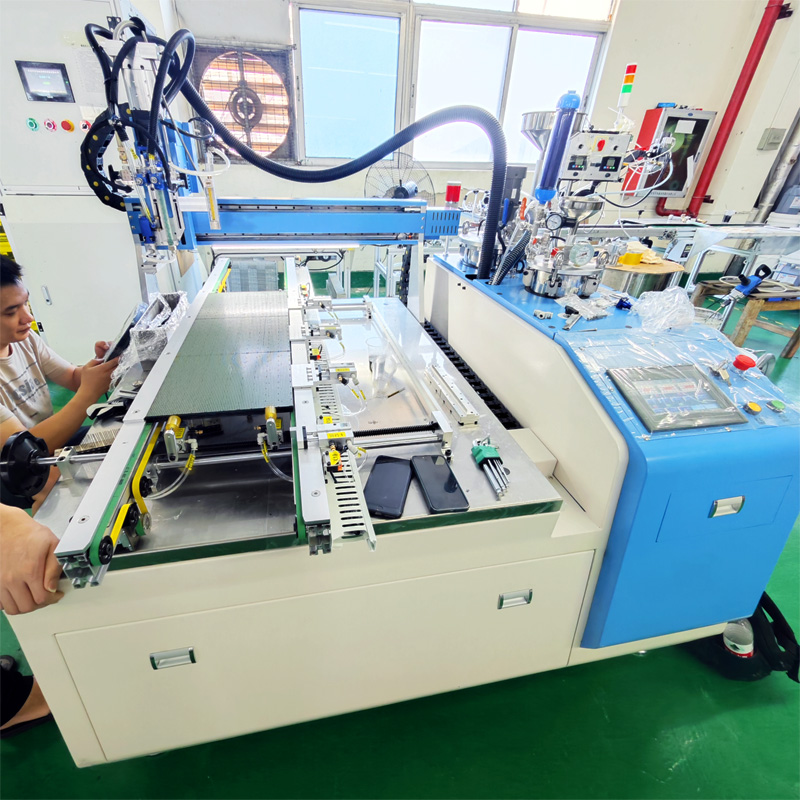

JHIMS | Led Module Glue Filling Machine

Product Number：JH-G810

Product Usage：Glue filling machine for LED modules

Applicable Industries：Capacitors, power supplies, transformers, high voltage packages, ignition coils, ballasts, inductors, circuit boardsApplicable glue:Two-component AB glue, silicone gel, epoxy resin, PU polyurethane glue

National Advisory Hotline：

+86 18975335491

Advisory

Product Details
Live Demo Video

Online automatic glue filling machine

I. Features and Advantages

1. Versatility, One Machine with Multiple Functions

2. Rich Function Configuration

3. Strong Production Capacity

4. High Precision

5. User-Friendly Operation

II. Working Principle

1. A/B type adhesives are separately loaded into A/B type barrels, with each barrel having specific functions to ensure the adhesive is stored in optimal conditions.

2. Precise adhesive extraction is achieved through two metering pumps, ensuring that A/B adhesives are uniformly dispensed according to the specified weight ratio.

3. The A/B adhesives are then evenly mixed through a blending device. Finally, a robotic arm is used to program the corresponding adhesive dispensing trajectory, achieving automatic positioning.

4. By configuring the appropriate adhesive quantity and corresponding programs, automatic positioning and quantitative adhesive dispensing are achieved, meeting the adhesive application requirements of specific products.

III. Technical parameters

Mixing ratio	100:100 — 100:10 any ratio
machine travel	8 00 7 00100 mm
Processing technology	Dots, straight lines, curves, circles
speed	50 0mm/s (displacement speed) 1-12ml/s (single pump glue speed)
precision	±0.03mm (repeat positioning accuracy) ± 2% (glue filling) ± 2% (glue dispensing)
program inventory	99
input air pressure	0.4MPa — 0.8MPa
glue viscosity	1cps~10 000cps
Operation method	manual / automatic
proportional control	PLC/double cylinder plunger pump
flow control	digital input
programmatically	teach programming
Automation Control System	PLC/touch screen (realize program programming, modification, storage, etc.)
Glue control system	AB glue back-suction valve realizes independent operation of AB glue
Hybrid	Dynamic mixing, instant mixing, easy cleaning
Storage tank system	Stainless steel barrels A (25L) and B (10 L ), A barrel is fed by a diaphragm pump
power supply	220V/ 50Hz/1200W
Dimensions	1550mm × 1350mm × 1700mm _ _
weight	550KG

IV. Main configuration

category	configuration	quantity	brand
body	Sheet Metal Rack	1 set	Jinghe R&D
	casters	4 set	Domestic
	switch button	3 set	Schneider/Chint
	Foot switch (optional)	1 set	Domestic
Control System	PLC programmable controller	1 set	Panasonic
	Sports Board + Hand Editor	1 set	Jets
	Software system	1 set	Jinghe R&D
	HMI	1	Kunlun Tongtai
	driver	6	Lei Sai
mobile platform	Upper silver guide rail + TBI screw (X/Y axis)	2 set	Taiwan
	Upper silver guide rail + TBI screw (Z axis)	1 set	Taiwan
	Servo motor (X/Y axis)	2	Mitsubishi
	Stepper motor (Z axis)	1	Lei Sai
Adhesive part	Stainless Steel A Plastic Bucket	1	Jinghe R&D
	Stainless Steel B Plastic Bucket	1	Jinghe R&D
	A barrel stirring motor	1	A DDK
	High Precision Double Cylinder Piston Pump A	1 set	Jinghe research and development (invention patent)
	High precision double cylinder plunger pump B	1 set	Jinghe research and development (invention patent)
	Dynamic dual liquid valve	1 set	Jinghe R&D
	High quality Teflon tube	2 pieces	import
Gas line	pneumatic dyad	1	AirTAC
Gas line	The electromagnetic valve	6	AirTAC
other	Tool accessories	1 set	Domestic
	Dynamic Mixer	10 roots	import
	Multi-head glue head	2	Jinghe R&D

V. How to Avoid Traffic Loss

The liquid is from the outlet of the gear pump to the rubber mixing head, and then to the mixing tube. A whole pipeline will generate a certain pressure on the liquid. In the case of a certain speed, the factors that affect the pressure are: the diameter of the delivery pipe, the viscosity of the liquid, the resistance of the mixing tube blades, etc. (the most important are these aspects). Therefore, during the working process of the glue filling machine, the actual liquid coming out is not in equal proportion to the speed of the pump and the displacement of the pump.

VI. Basic configuration

1. Supply glue by high-precision metering pump

2. Three-axis manipulator

VII. Optional Configurations

1. Vacuum pumping

2. Heating

3. Automatic cleaning

4. Stirring

Ⅷ.Application Scenario

1.Glue filling machine is used for LED module gluing machine, LED module gluing system, LED display module sealing machine, LED TV wall and other products.Glue filling machine is a key machine in LED display and TV wall industry. These machines play an important role in protecting LED modules by providing comprehensive water, dust, sand and moisture protection for LED displays.

2.The LED Module Potting Machine utilizes advanced encapsulation technology to provide strong protection for LED modules. The machine plays an important role in outdoor LED displays and video walls by encapsulating the AB adhesive to the LED displays. The AB adhesive is waterproof, dustproof and sandproof, which ensures stable operation in various harsh environments. At the same time, its efficient moisture resistance ensures that the LED modules work properly in humid environments, extending the service life of the LED display.

3.The LED display module filling machine represents the pinnacle of LED display technology. It is designed to take into account the special requirements of outdoor LED use and provides all-round encapsulation protection for LED modules. The gluing system can quickly and evenly cover the surface of the LED module with adhesive, forming a strong protective film, effectively preventing the intrusion of water vapor and dust, and improving the stability and reliability of the LED display.

4.The LED TV wall gluing machine is an important tool to improve the reliability of LED TV wall. Its gluing system not only enhances the structural stability of the LED module, but also effectively slows down the aging process of the LED display in the outdoor environment, making the LED TV wall more durable. As an important information carrier, the stable operation of LED TV wall is crucial for various applications.

5.LED module applicators play an important role in the LED display and video wall industry. They are indispensable in the industry because of their automated operation, uniform gluing, adaptability to various environments, and long service life. The emergence of these machines has pushed LED display technology forward, providing strong support for the reliability of LED displays and video walls.
