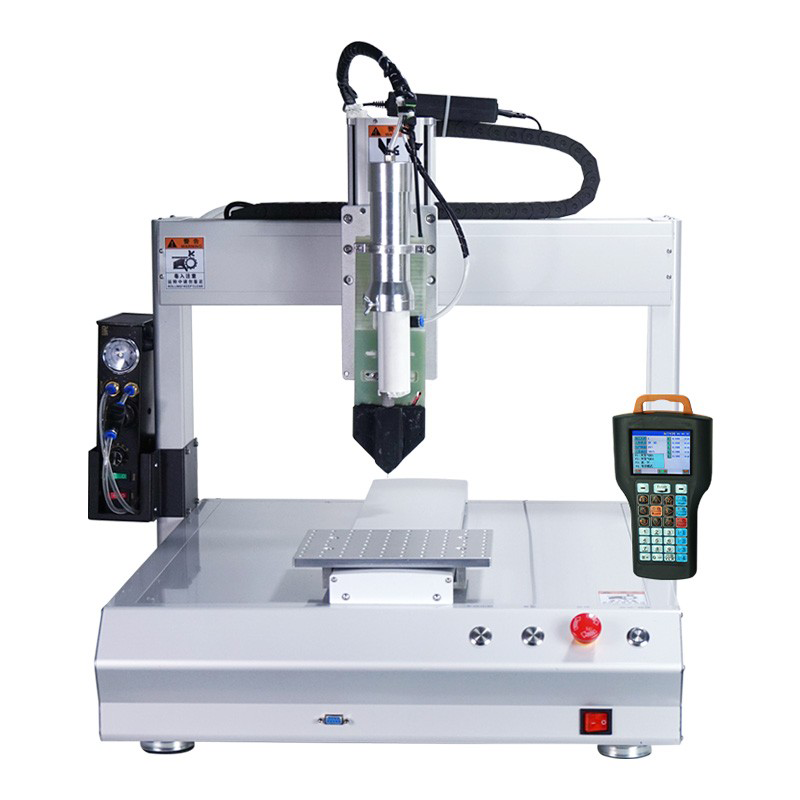

Product Number:SZF-500

Product Usage:Desktop AB glue automatic dispenser precisely dispenses the glue to the specified position after mixing the AB glue according to the set ratio through the automatic control system.

Applicable Industries:Desktop AB glue automatic dispenser has a wide range of applications in many industries, mainly including: Electronics industry: for the fixing and protection of electronic components, such as circuit board encapsulation, connector fixing, etc. Automotive industry: used for bonding and sealing of automotive parts, such as lamps, instrument panel assembly. Medical industry: used in the assembly and encapsulation of medical devices, such as the production of syringes and catheters. Home appliance industry: used in the assembly and sealing of home appliance products, such as the bonding of refrigerator and air conditioner parts.

National Advisory Hotline

National Advisory Hotline:

+86 18975335491
  • Product Details
Desktop type AB glue automatic dispenser

1、Desktop AB glue automatic dispenser is mainly composed of the following parts
Dispensing head: this is the core part of the equipment, responsible for accurately applying the mixed AB adhesive on the surface of the workpiece. The dispensing head usually adopts high-precision nozzles to ensure the uniformity and consistency of dispensing.
Cylinder and mixing system: AB adhesive is stored in two cylinders respectively, and the two kinds of adhesive are transported to the mixing system through proportional pump or gear pump according to the set ratio, and then transported to the dispensing head after uniform mixing in the mixing system.
Control system: PLC or microcontroller is generally used to control the dispensing parameters, such as the amount of glue, dispensing speed, movement path, etc. through programming. The operation interface is usually a touch screen, which is convenient for the operator to set and adjust the parameters.
Working platform: the dispenser is installed on a stable working platform, which usually has XYZ axis motion system for precise positioning of the dispensing head in three-dimensional space.
Other auxiliary devices: including heating device, stirring device, vacuum adsorption device, etc., which are used to ensure the fluidity of AB glue and the precision of dispensing.

 2、Working principle
The working principle of desktop AB glue automatic dispenser is as follows:
1. Glue preparation: Load A glue and B glue into the corresponding cylinder respectively, set the mixing ratio and dispensing parameters.
2. Mixing and conveying: start the equipment, AB glue according to the set ratio from the barrel through the pipeline to the mixing system, in the mixing system evenly mixed.
3. Dispensing operation: the mixed adhesive is accurately applied to the specified position of the workpiece through the nozzle of the dispensing head. the XYZ axis motion system moves according to the pre-set path to ensure the precision of dispensing.
4. Curing: After dispensing is completed, the workpiece enters the curing stage, which may require heating or UV light curing depending on the adhesive material.

3、Main features
High precision: Through the high-precision dispensing head and motion system, the accuracy and consistency of dispensing is ensured.
High efficiency: automated operation greatly improves dispensing efficiency, reduces manual intervention and increases production speed.
Flexibility: Parameters can be adjusted according to different workpieces and different dispensing needs, adapting to a variety of dispensing tasks.
Easy to operate: humanized operation interface, simple and easy to understand, easy for operators to carry out quick start and maintenance.
Stability: Stable operation, low failure rate and low maintenance cost.

4、When purchasing a desktop AB glue automatic dispenser, you should pay attention to the following points
Dispensing precision: select the appropriate dispensing precision according to the requirements of the workpiece to ensure product quality.
Equipment stability: choose the brand with good reputation and after-sales service to ensure stable operation and timely maintenance of the equipment.
Convenience of operation: whether the operation interface of the equipment is friendly, whether it is easy for the operator to set and adjust the parameters.
Expandability: consider the expandability of the equipment, whether it can adapt to future changes in production requirements, such as increasing the number of dispensing heads, upgrade control systems.


5、Features


Y-type needle-controlled rubber valve, the glue is cut off without any wire drawing

There is no big end at both ends, uneven connection, etc.

Compatible with 10:1, 1:1, 2:1 AB glue mixed dispensing

Continuous dispensing function for irregular curves such as arbitrary points, lines, surfaces, arcs, etc.

A variety of dispensing needles, syringes, and dispensing valve controllers to meet different needs

With refrigeration function effectively delay the curing time of AB glue



6、Specification Table

model

SZF-500

stroke

600/600/500/500/100/100(On-demand customization)

Programmatically

Teaching programming or graphics import

Movable graphic trajectory

Point, straight line, arc, full circle, curve, polyline, spiral, ellipse

Glue ratio

1:1、2:1、4:1、5:1、10:1Double liquid structure frame

Dispensing method

Mechanical valve + Y-type needle

Cooling method

Vortex tube refrigeration

Glue frequency

5 times/sec

load

Y/X axis load

10kg

Z axis load

5kg

Axis moving speed X/Y/Z (mm)

0-600mm/sec

Decomposing ability

0.01mm/Axis

Repeat positioning accuracy (mm)

Screw drive

0.01-0.02

Synchronous belt drive

0.02-0.04

Program recording mode

At least 100. 5000Points per group

Display method

LCD teaching box

Motor system

Japan micro stepping precision motor

transfer method

guide

Taiwan Shangyin Linear Guide

Screw

Taiwan Silver Screw

Belt

Italy Elate Synchronous Belt

X/Y/Z axis synchronous belt is standard configuration, Z axis screw is optional, X/Y/Z axis screw is customized

Motion tweening function

3axis (any route in 3 three-dimensional space)

Input power

Full voltage AC110V-220V

External control interface

RS232

Motor control axis

6 axis

Axis dynamic range

X axis

500

X axis

500

Y axis

600

Y axis

600

Z axis

100

Z axis

100

Body weight

138kg
