Location： Home » Product Center » Screw Machine Series » Blowing Automatic Screw Machine

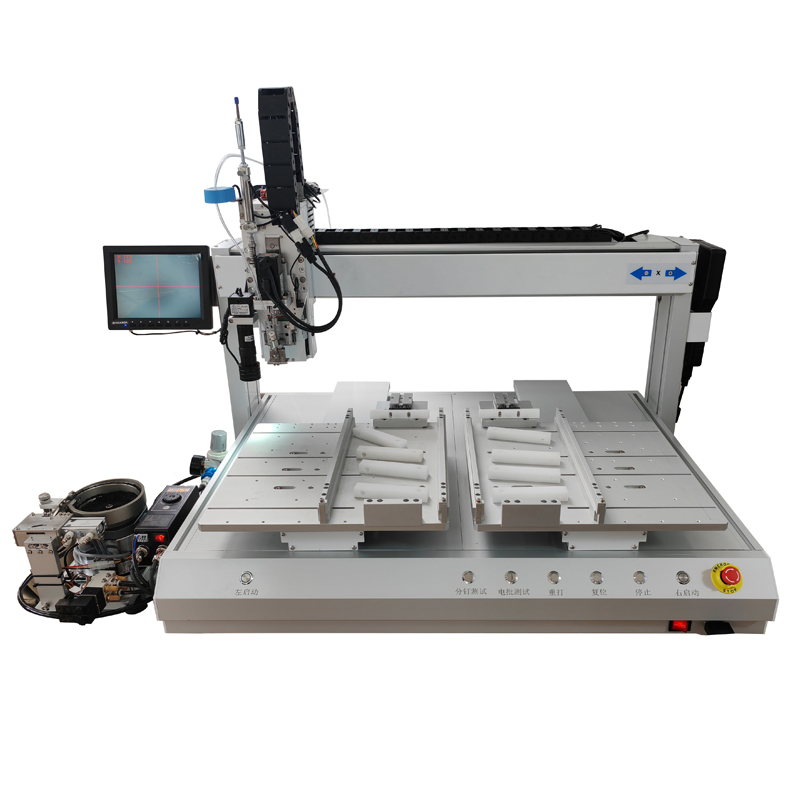

Small automatic screw tightening machine

Small automatic screw tightening machine

Product Number：TZ-CQ5331

Product Usage：The main purpose of a screw machine is to automate the tightening or loosening of screws to improve production assembly efficiency and accuracy. It can significantly reduce manual operations and improve product consistency and quality.

Applicable Industries：Product Usage：It is suitable for automatic locking screw operation of small household appliances, electronic products, communications, mobile phones, tablet computers, notebook computers, keyboards, etc.

National Advisory Hotline：

+86 18975335491

Advisory

Product Details

Small automatic screw tightening machine

1、Product Introduction

1.Screw machine, consists of feeding system and pay lock system, of which the feeding part, also known as the screw arrangement machine, screw supply machine, is a relatively simple screws into a row, in order to improve the efficiency of a small automated machine, widely used in the electronics industry.

2. The size range of screws has been adjusted to a certain space. From M0.6 to M8 and so on, and for special screws, there is room for maneuver, individually designed, 1:1 short screws, screws with spacers can be universal, easy to adjust the track, screw machine tracks can be drawn out to freely adjust, simple to understand, easy to operate.

3. Now the screw machine technology has been very mature, the previous card screw machine failure probability is greatly reduced. Such as the phenomenon of missing screws, are automatically alarmed, greatly increasing production efficiency.

4. Now the screw machine equipment, in the feeding system and vibration drive independent control, can be freely set the ideal delay stop time, when the abnormal situation arises, the screw machine will start the fault alarm function.

◆When taking out the screws, for the screw head position, just put the batch head into the batch head guide, slide down the guide, and then pull out the screws in front of the face.

◆ Compared with conventional screwdrivers, it can save 1.4 seconds per screw and increase productivity up to 6 times!

◆Easy to operate, even a novice can learn the operation method immediately.

◆No need to align the screws, just put the screws into the feeding room in batches.

◆Widely used in all kinds of electronic industry, automobile, TV set, air conditioner and other industries that need screws.

2、Product features

◆When extracting the screws, just put the tip of the nozzle into the nozzle guide, slide down the guide, and then pull out the screws in the direction of the user.

◆ Compared with the traditional screwdriver, it can save 1.4 seconds to extract each screw, so it can improve the production efficiency up to 4 times.

◆Easy to operate, even the first time user can learn the operation method in real time.

◆Widely applicable to various types of screws with different lengths and head shapes. （◆ Widely applicable to various types of screws with different lengths and head shapes (the length is basically less than 20mm at present).

◆Small form, one operator can operate several screw conveyors at the same time.

(1) Easy to use, smooth screw supply

(2) Replaceable guide rails

(3) Special screws can be applied because of the horizontal conveying method.

(4) Standardized bits of each manufacturer can be applied.

3、Use and maintenance

Screw machine work, due to vibration, the machine itself may be loose screws, if possible, it is best to please tighten the screws of the machine before each use, so as to avoid the position of the loose caused by the supply of less than a variety of situations such as the occurrence of material.

4、Industrial tightening system

Automatic feed locking screw machine, also known as automatic screw locking machine, automatic screw locking machine, industrial tightening system, etc., is an automated mechanism instead of manpower to complete the screws to take, put, tighten the automation device, a little change can also be used for columns strong small parts of the automatic assembly, in foreign countries have been widely used, and at present a number of domestic enterprises are very broad prospects for the application of many of the main applications in the production of automotive parts, computers, display screens, Mainly used in automotive parts production, computers, display screens, lamps, cell phones, printers, circuit boards, batteries, meters and other automatic assembly, can greatly improve production efficiency, reduce production costs, improve reliability.

5、Automatic lock feeding

Steps for automatic lock feeding screw machine

Step 1: Manually pour the screws into the bin slot of the feeding mechanism;

Step 2, the screws will be sorted by the feeding mechanism and distributed through the distributor to distribute the screws, and the pipe will send the screws to the electric or pneumatic driver;

Step 3, a locking system for locking the screws into the product by the electric or pneumatic driver.

Features:

Double Y-axis platform, the operator can alternate loading and unloading

Continuous feeding, can provide screw counting function and anti-leakage function

The screws are directly transported to the batch nozzle, saving the time of fetching the screws back and forth.

Blowing feeding system

Main configuration of the machine:

Four-axis aluminum profile workbench

Handheld teaching programmer

Imported electrical certification

Automatic screw feeder

Specification Table:

Model	Blowing type automatic locking screw machine
Electric batch	Japan HIOS
Programming method	Teaching programming or graphics import
Control system	SCM + handheld box control
travel range of mechanical platform	500/500/600/600/100/100/ (Itinerary can be customized)
Maximum load	10kg
Movement speed	0-800
Time to lock a screw	0.6-1.5 seconds
Repeat accuracy	±0.02mm/Axis
Program record mode	999 groups
Display mode	LCD teaching box
Guide	Taiwan Shangyin Linear Guide
8000P electric batch torque (optional)	N · m	0.39-1.76
	Lbf · in	3.52-15.84
	Kgf · cm	4-18
Sensor	OMRON
Screw arrangement machine capacity	Screw (M2*6) 5000PCS (according to the size of the screw )
Motor system	Z axis	Servo closed loop motor
	X/Y axis	Japan micro stepping precision motor
Transmission mode	Z axis	Taiwan Shangyin Screw (optional)
	X/Y axis	Italy Elate timing belt
drive	Lei Sai
Alarm function	Floating lock, sliding teeth, leaking lock
Applicable screws	M0.9-M6.0
Input power	full voltage AC110V-220V
External control interface	RS232

Applications

Electric drill lock screw machine, LED panel light lock screw, hexagon socket lock screw machine, notebook lock screw machine, square gasket lock screw machine, double-head blown automatic lock screw machine, all products support non-standard customization
